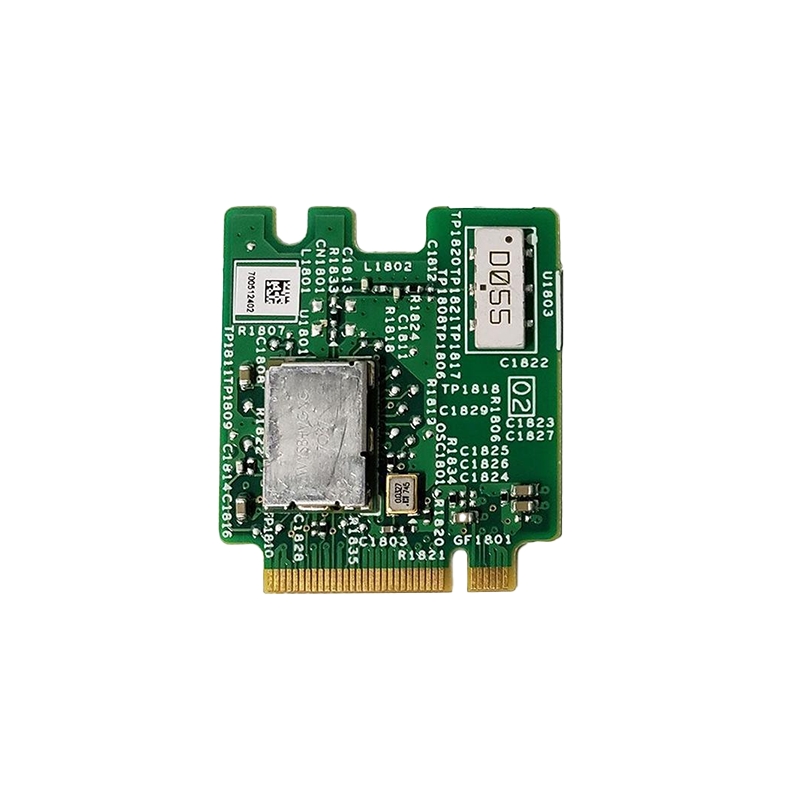

J100 Wireless Module

The Avaya J100 Wireless Module is an optional plug-in hardware module. It provides Wi-Fi network connectivity for Avaya J100 Series IP Phones and Wi-Fi network and Bluetooth.

Avaya J100 Wireless Module Features

• Provides Wi-Fi network connectivity on Avaya J129, J159, J179, and J189 IP phones running SIP firmware
• Allows you to use wireless ethernet when wired ethernet is not available
• The secondary PC port is NOT active if WLAN is used
• 802.11 a/b/g/n/ac
• Multiple SSID
• Enterprise-grade security - WEP, WPA-PSK, WPA-Enterprise, WPA2-PSK, WPA2-Enterprise, WMM, EAP-FAST, PEAP-MSCHAPv2
• Manual wired <-> wireless failover, manual SSID <-> SSID failover
• Icon shows on phone screen top line when WLAN is in use

Provides connectivity to Bluetooth wireless headsets on Avaya J179 and J189 IP phone running SIP firmware

• Bluetooth Version 4.2
• Supports Handsfree profile and Headset profile
• Up to seven headsets can be paired
• Bluetooth power class 2 (10 meter range)
• Status icon shows on phone screen top line when Bluetooth is enabled.

Provides Wi-Fi network and Bluetooth connectivity on Avaya Vantage K155 Multimedia Device

Compatibility

• Compatible with Avaya J129, J159, J179, J189 IP phones
• Wi-Fi network connectivity requires the use of J100 SIP 2.0 or later software
• Bluetooth connectivity requires the use of J100 SIP 4.0.0 or later software
• The J100 Wireless Module is not supported with Deskphone H.323 software
• Supported on Avaya IP Office 11.0.4 or higher
• Also compatible with Avaya Vantage K155 Multimedia Device
