19" HD Cable Management
19" HD Cable Management
SKU: Part Number: R853671
Out of stock
Price available upon request
Regular price
Sale price
RM0.00
Unit price
/
per
Shipping calculated at checkout.
DESCRIPTION & SPECIFICATIONS
These high-density cable managers can be used for both vertical as well as horizontal cable guidance in the cabinet. Thanks to the featured cable management fingers, their use as strictly front-sided cable guidance is achieved fast and easily.
Warranty
5 Years + extended warranty
Description
- Closed cable management with front cover
- R&M Logo: Red/white printing for black version
- R&M Logo: Red/black printing for gray version
- Optimized design for high density patching
- High quality ABS rounded cable management fingers
- Interlocked metal plate and plastic fingers ensuring smooth and edge free surfaces
- Fixing of plastic cable management fingers on outside ensuring ultimate stability
- Textured hinges provide grip to facilitate opening and closing of front cover
- Top and bottom hinges at different width position for stability

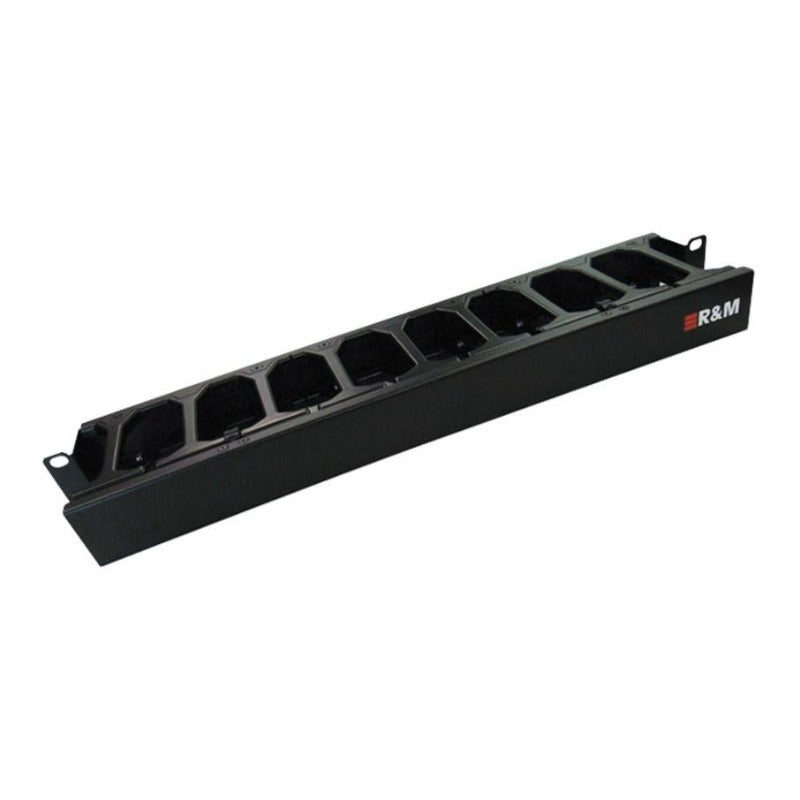

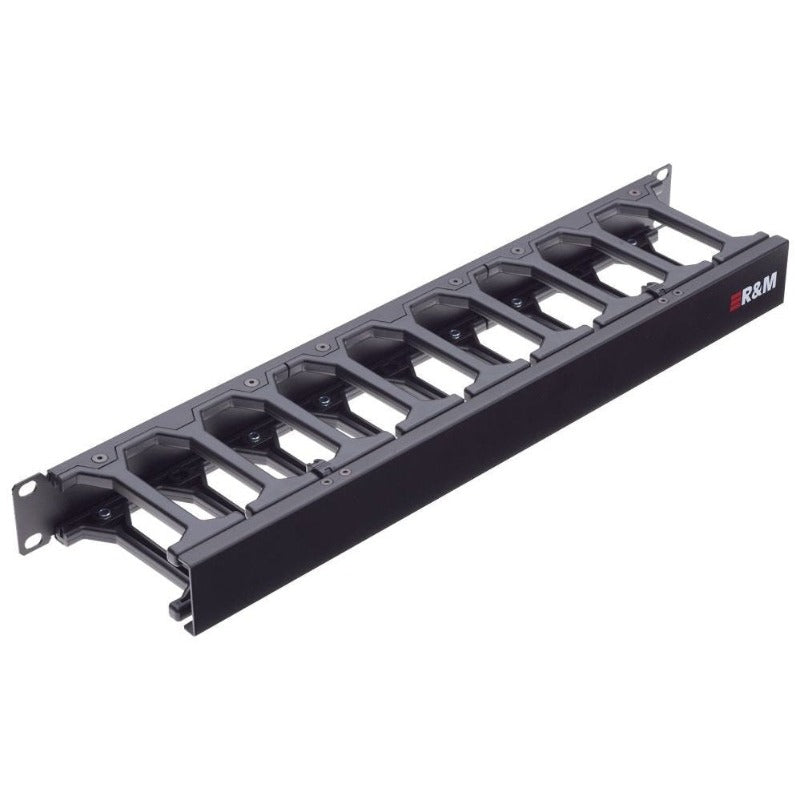

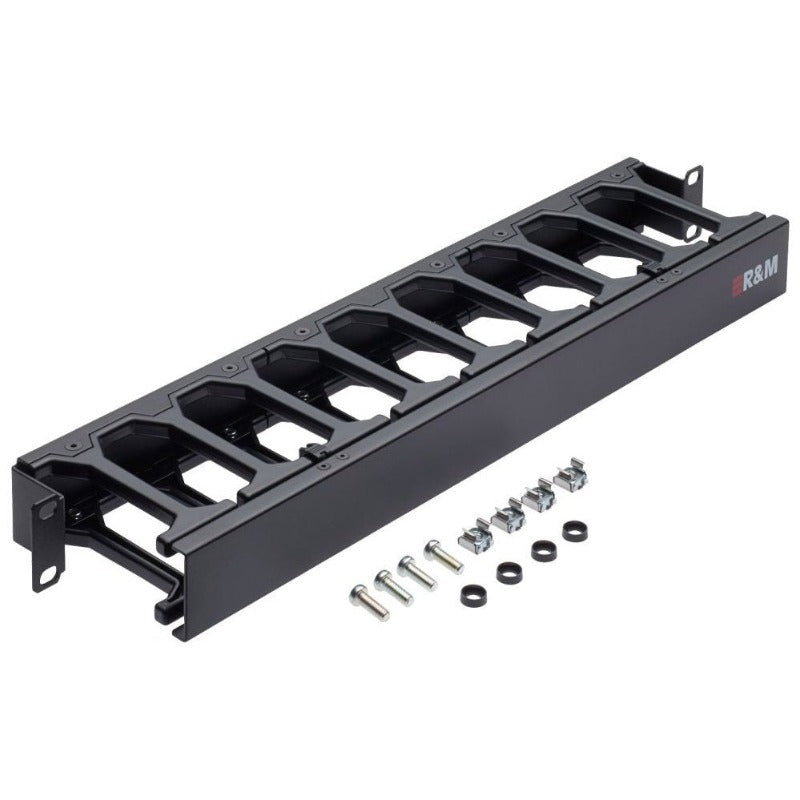

- Black version : 19” plate full, ideal for DC (controlled air flow)

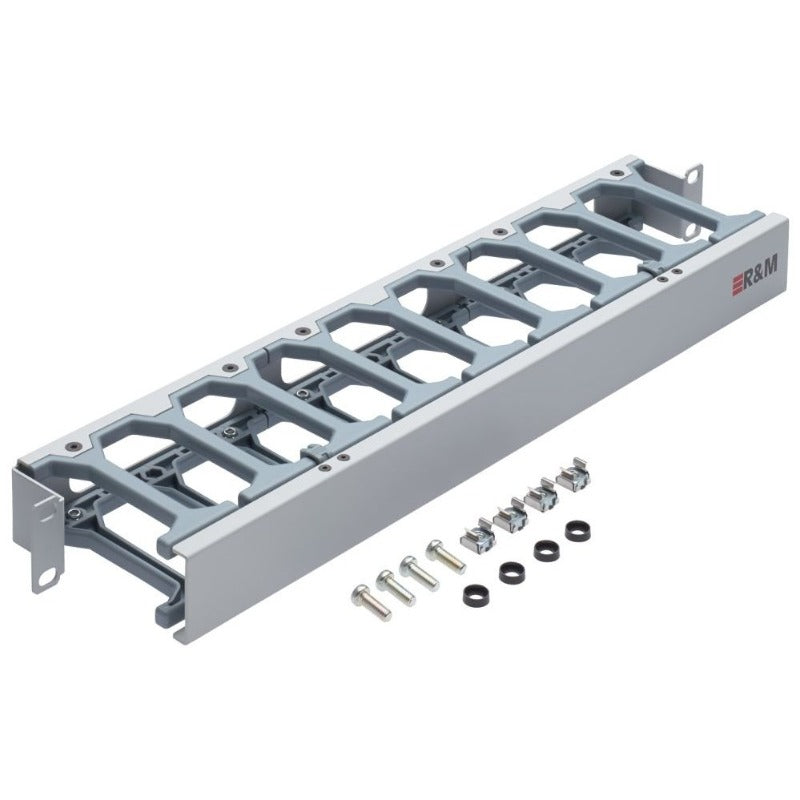

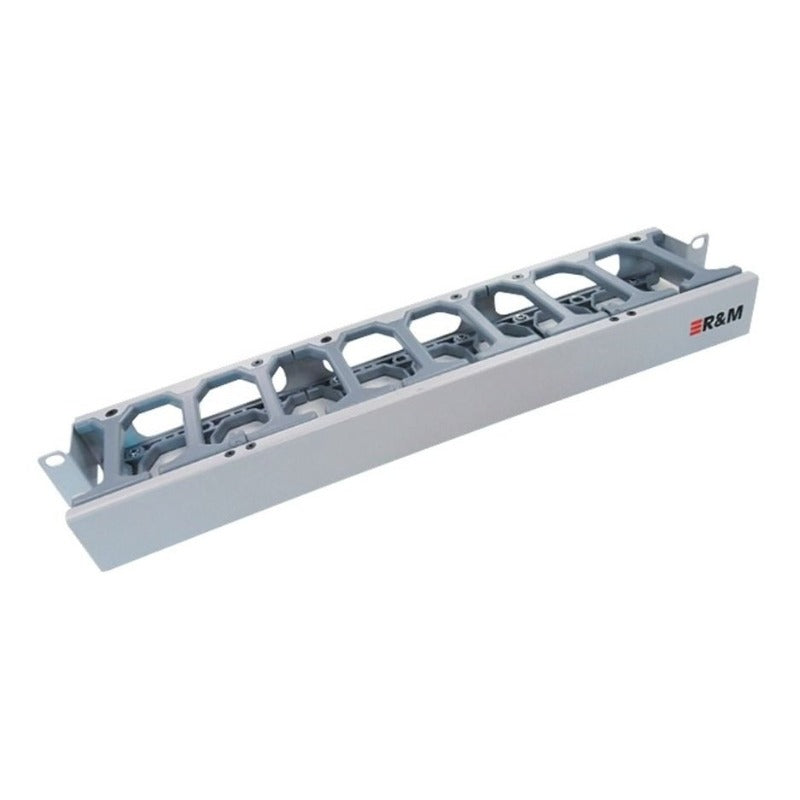

- Gray version : 19” plate with patch through openings, ideal for office cabling
- Compatible with existing R&Mfreenet products
Scope of supply
- 19” cable management with front cover
- 19” mounting set
| Gross Weight | 1U | 2U | Recessed |
| Black version | 970.00 G | 1,390.00 G | TBA |
| Gray version | 880.00 G | 1,200.00 G | TBA |
| Technical Data | 1U | 2U |
| Dimensions (HxWxD) | 43.2 x 482.6 x 110 mm | 87.7 x 482.6 x 110 mm |
Mechanical Characteristics
Material
| Front cover | Sheet aluminum |
| Back plate | Sheet steel |
| Fingers & hinges | Plastic ABS |
Disclaimer: The images shown are for illustration purposes only and may not be an exact representation of the product. vnetwork System reserves the right to change product images and specifications at any time without notice.
