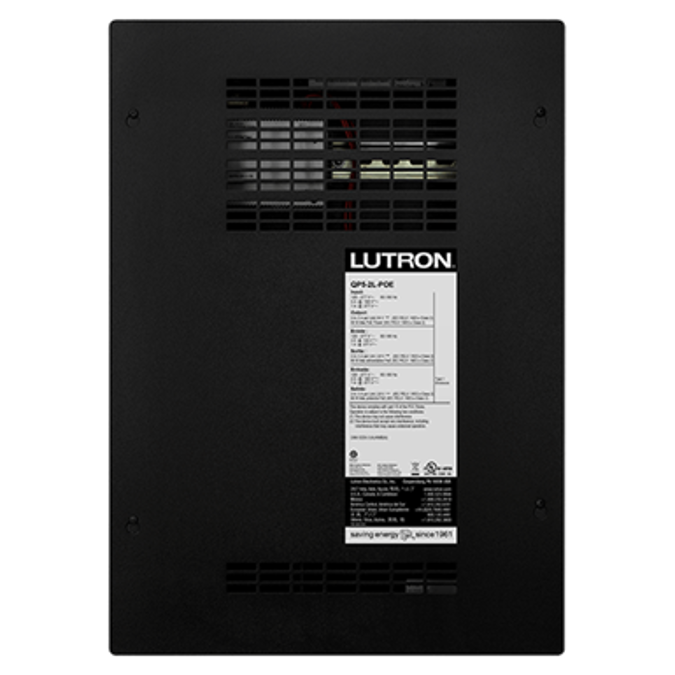

Athena Light Management Hub (QP5)

The Athena Light Management Hub (QP5) connects Lutron QS devices to your Athena lighting and shading control system.

Features

• Designed to control, manage, and monitor Lutron Energi Savr Node units, QS and Pico wallstations, Contract Roller QS shades and QS drapery systems.

• The Athena system brings switching, dimming, motorized window shades, digital ballasts, digital LED drivers, and smart sensors together under one software tool.

• QS link wiring can be T-tapped or daisy-chained.

  QP5 Hub Capabilities

• Supports up to two Athena Edge processors with up to two links each that can be individually configured to communicate with:
  – Lutron QS devices

• Includes 8-port Ethernet unmanaged PoE switch to easily connect processors and power a Lutron Athena Clear Connect Gateway–Type X.

• Q-POE-PNL can be used to connect a Lutron Athena Clear Connect Gateway–Type X to the processor hub when the wiring distance exceeds
  328 ft (100 m).

• Supports both astronomic and time-of-day events to automatically control the lights and shades/draperies in the system.

  Athena Hubs Available:

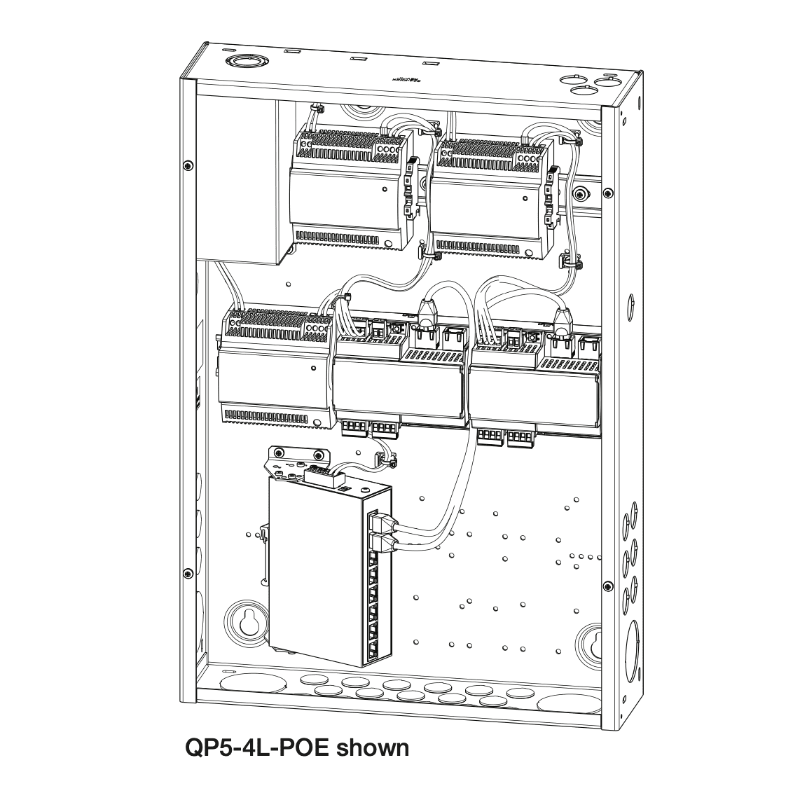

  QP5-1L-POE – 1 Link Athena hub* QP5-2L-POE – 2 Link Athena hub QP5-4L-POE – 4 Link Athena hub

  Athena Hub Accessory:

  Q-POE-PNL – Ethernet range extender, no configurable link. Does not include an

  Athena Edge processor or respective software features and functionality.

* 1L hub link capability differs from 2L and 4L hubs. See Specifications page.

** Pico wireless controls, QS keypads, IR
