DM NVX® 4K60 4:2:0 Network AV Encoder
DM NVX® 4K60 4:2:0 Network AV Encoder
A reliable, high-performance AV over IP encoder that transports 4K60 4:2:0 and 4K30 4:4:4 video over standard Gigabit Ethernet with no perceptible latency or loss of quality. Supports HDCP 2.3 and provides a secure 4K signal routing solution for enterprise and campus-wide content distribution applications.
The DM-NVX-E20 is a compact AV-over-IP encoder designed to transmit video with resolutions up to 4K60 4:2:0 over standard Gigabit Ethernet. Featuring secure web‑based control and management, an HDMI® input, an analog audio output, AES67 transmit and receive capability, and copper Ethernet connectivity with PoE support, the DM-NVX-E20 provides an encoder solution that offers price and performance optimization in a DM NVX network AV installation of any size.1, 2
Real-Time 4K60 Video Performance
Engineered for demanding conference room and classroom applications, the DM-NVX-E20 ensures real‑time, full‑motion 4K60 video performance for the presentation of multimedia, videoconferencing, and live camera images. Interactive functions such as gameplay and the use of a mouse are fluid and natural.
A DM NVX system is engineered for stability and ultimate reliability. Line‑synchronized outputs ensure perfect synchronization of content across multiple displays for applications such as digital signage. Variable Multicast TTL (Time To Live) enables traversing multiple network routers for optimal flexibility.
Using advanced security features and protocols such as 802.1X authentication, Active Directory® credential management, AES‑128 content encryption, PKI authentication, TLS, SSH, and HTTPS, a DM NVX system delivers a true enterprise‑grade network AV solution engineered to fulfill demanding IT policies.
The DM-NVX-E20 encoder provides one HDMI input that enables a laptop computer, camera, or other media source to be connected via an HDMI cable and then transmitted over the network to one or many decoders.1Compatible with the DM-NVX-D20, DM-NVX-D200, and other DM NVX products that can function as decoders, the DM-NVX-E20 can be used in any DM NVX network AV design.
NOTE: If the DM-NVX-E20 is used with the DM-NVX-D10, the resolution of the DM-NVX-E20 must be configured so that it does not exceed the maximum resolution supported by the DM-NVX-D10.
It is recommended that the DM-NVX-E20 not be used with the DM-NVX-D10 in order to maintain the higher resolutions supported by the DM-NVX-E20.
Fixed or Adaptive Bit Rate
The bit rate of a stream can be set to a fixed or adaptive bit rate. A fixed bit rate, also referred to as Constant Bit Rate (CBR), is user specified and can be set to a value ranging from 200 Mbps to 950 Mbps.3
Adaptive bit rate (ABR) enables the encoder to automatically set a fixed bit rate based on the input resolution of the stream. For example, the adaptive bit rate for a common resolution such as 1920x1080p@60Hz (1080p60) would automatically be set to 400 Mbps. Adaptive bit rate makes better use of the available bandwidth than a user-specified fixed bit rate.
The web interface or a control system can be used to set a fixed bit rate or to enable adaptive bit rate functionality.
Analog Audio De-embedding
The analog audio output provides a stereo line‑level signal to feed a local sound system or sound bar. The output volume can be adjusted by using the web interface or a control system.4
7.1 Surround Sound Audio
DM NVX technology supports the lossless transport of 7.1 surround sound audio signals, including Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed linear PCM.
AES67 Audio Embedding and De-embedding
AES67 support enables the selected audio source to be transmitted as a 2-channel AES67 audio stream while another 2‑channel AES67 audio stream is received from a Crestron DSP or other third-party device. The AES67 audio stream that is received can be output via the analog audio output.
NOTE: An AES67 audio stream that is received by a DM NVX endpoint cannot be transmitted from that endpoint.
Copper Ethernet Connectivity

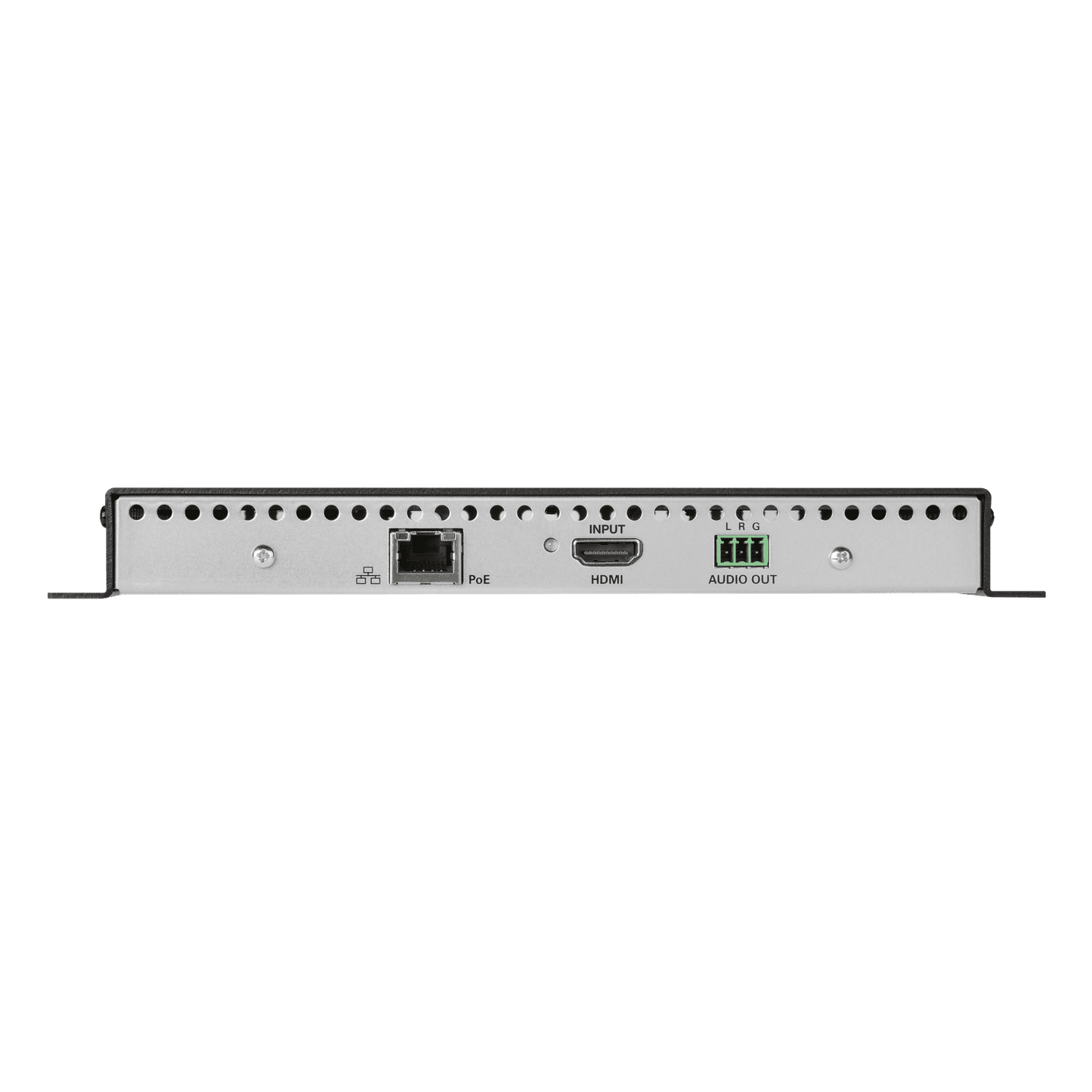

The DM-NVX-E20 includes one RJ-45 1000BASE‑T Ethernet port.2 The port is PoE compliant, enabling the device to be powered via a PoE Ethernet switch.5 For information about network requirements and guidelines, refer to the DM NVX AV-over-IP System Design Guide.
Automatic Point-to-Point Connectivity
Point-to-point connectivity enables the DM-NVX-E20 to be connected directly to a DM-NVX-D20 or DM-NVX-D200 in order to stream video and audio. Rather than being connected to an Ethernet switch, the 1000BASE-T Ethernet port of the DM-NVX-E20 is connected directly to the 1000BASE-T port of the decoder.
By default, point-to-point mode automatically detects whether the DM-NVX-E20 is connected directly to a decoder or to a 1000BASE-T switch. When a direct connection between the DM-NVX-E20 and the decoder is detected, the devices operate in point-to-point mode without the need for additional configuration. The web interface or a control system can be used to disable point-to-point mode or to enable automatic detection of point-to-point connectivity.
Device Control via RS-232, IR, and CEC

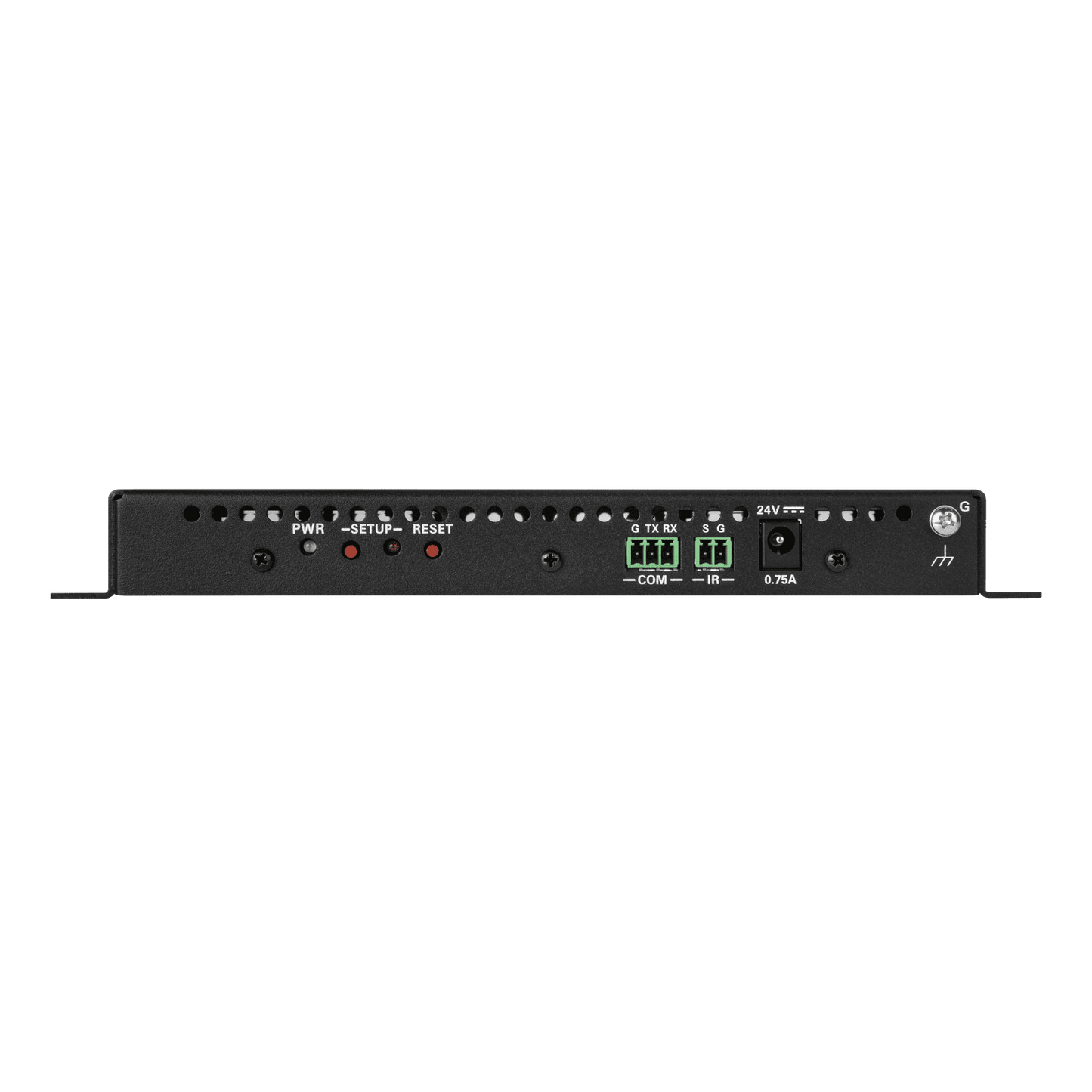

The DM-NVX-E20 includes built‑in COM (RS‑232) and IR ports for control of source devices under the management of a control system. Additional control capability is provided by CEC (Consumer Electronics Control) over the HDMI connection. Under the management of a control system, the DM-NVX-E20 can control a source device via CEC, potentially eliminating the need for dedicated serial cables or IR emitters.
Setup of the DM-NVX-E20 is accomplished by using a web browser. Full control and monitoring of the device is enabled through integration with a control system or with a DM NVX Director® virtual switching appliance.
Streamlined Management Using DM NVX Director Virtual Switching Appliances
Use of a DM NVX Director virtual switching appliance (DM-NVX-DIR-80, DM-NVX-DIR-160, or DM-NVX-DIR-ENT) streamlines the entire configuration and control process. A DM NVX Director appliance provides a central point of management and enables the creation of multiple virtual matrix switchers through one easy‑to‑use web‑based portal.
Compact, Surface-Mountable Design

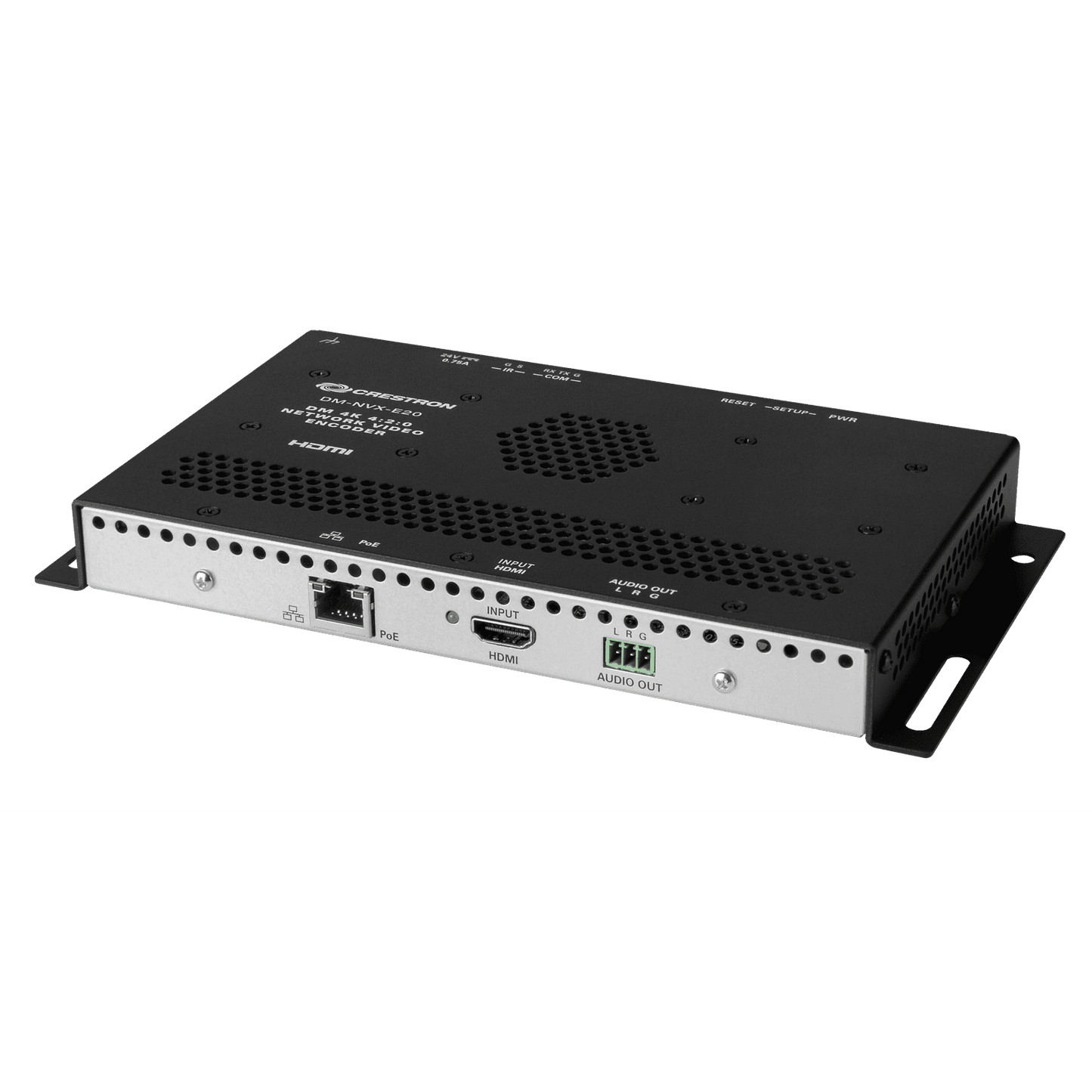

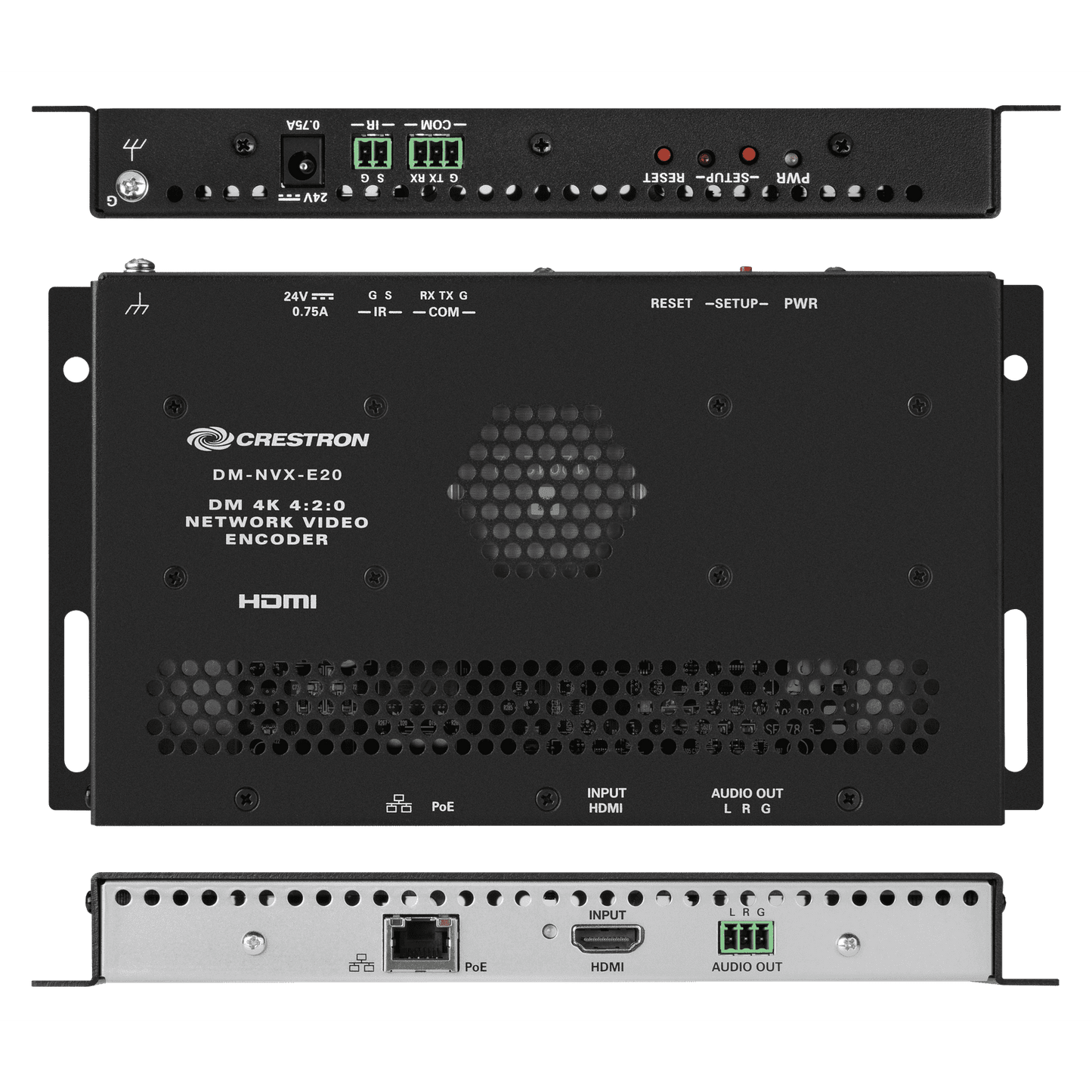

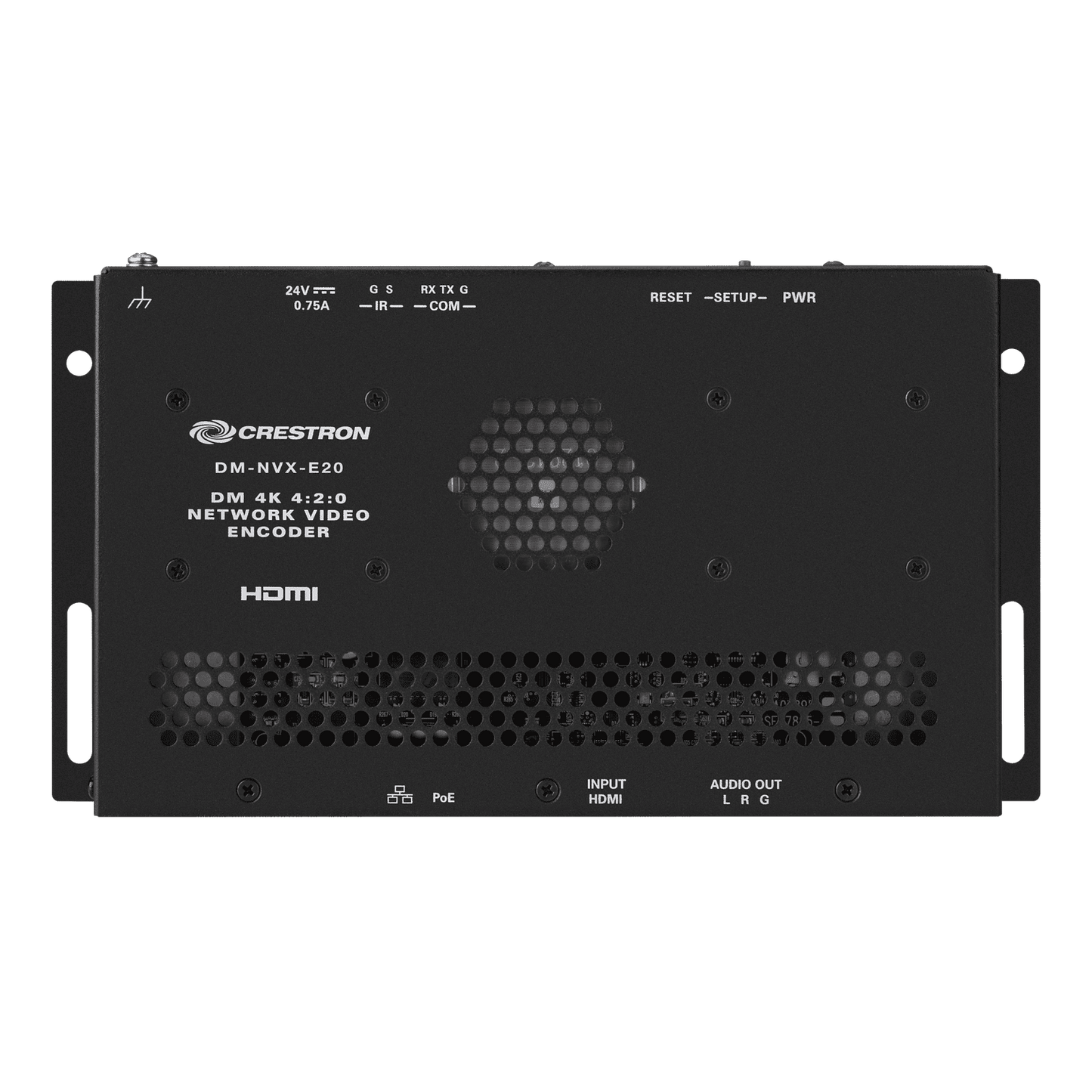

The DM-NVX-E20 mounts conveniently to a flat surface or rack rail and fits easily beneath a tabletop or inside a lectern, AV cart, or equipment cabinet. All connectors and LED indicators are positioned on the front and rear of the device, offering optimal access and visibility for a clean, serviceable installation. Power is provided via PoE or an optional power pack (sold separately).5
For additional information about DM NVX technology and the DM NVX product family, refer to the DM NVX web page at www.crestron.com/nvx
- Support of video resolutions up to 4K60 4:2:0 over standard Gigabit Ethernet, 4K30 4:4:4 included
- Real-time video performance over the network
- Enterprise‑grade security including 802.1X, Active Directory® credential management, TLS, and AES‑128
- HDCP 2.3 compliance
- Encoder functionality for use with the DM-NVX-D20, DM-NVX-D200, or other DM NVX® products that can function as decoders
- One HDMI® input
- Fixed or adaptive bit rate
- Analog audio de-embedding
- 7.1 surround sound audio
- AES67 audio embedding and de-embedding
- Copper Ethernet connectivity with PoE support
- Automatic point-to-point connectivity with the DM-NVX-D20 or DM-NVX-D200
- Device control via RS-232, IR, and CEC
- Easy setup using built-in web pages
- Compatibility with Crestron® 3-Series® or later control systems
- Streamlined management using DM NVX Director® virtual switching appliances
- .AV Framework™ technology support
- XiO Cloud® service support
- Crestron Home® OS support
- API for full control of the DM-NVX-E20
- Compact, surface-mountable design
- Powered via PoE or optional power pack (sold separately)
