DPtech

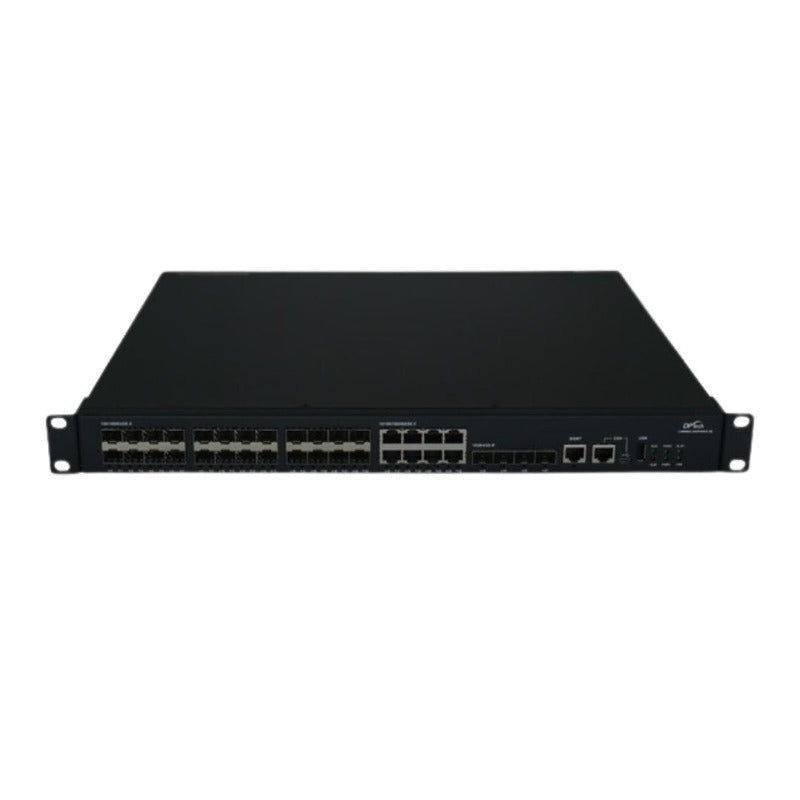

LSW5662-SE Series
LSW5662-SE Series
SKU: Part Number:
Out of stock
Price available upon request
DESCRIPTION & SPECIFICATIONS
Traditional intranet is a shared network, with no access control on terminals or mutual access among terminals. This vulnerability can be easily exploited by hackers to spread viruses and attacks. In case of intranet security incidents, it is impossible to locate and control the source of attack in the first place and extremely difficult to trace back. DPtech LSW5662-SE Series Self-Secure switches provide the network with security protection and exception disposal capabilities by taking advantage of intelligent computing technology. The built-in behavior model and baseline detection provides the Self-Secure switches with immunity to virus transmission, network attacks, and hacker penetration. With automatic policy deployment, self inspection and recovery of ring networks, and baseline detection, it can further extend its security protection to intranet, realizing threat suppression of key nodes of network, operation and maintenance of the entire network, and simplified network management.
- Behavior model detection to enable virus suppression and other threats
With its built-in behavior model and traffic baseline, the LSW5662-SE Series can provide timely alerts on abnormal network events, such as virus transmission, IP/MAC spoofing, bots attacks and hacker penetration, and contain such events within one switch.
- Fast loop blocking to pinpoint exceptions
Based on the Technology of industry’s unique real-time loop detection, the LSW5662-SE Series can spot and block the switch’s own loop, downlink switch and Hub loop, and pinpoint loop interfaces and loop vlan through active detection and passive monitoring.
- Effectively detect breaches to provide clean intranets
The LSW5662-SE Series can spot illegal inline behaviors of connected devices (such as small routers) to avoid network security threats and daily operation and maintenance problems caused by private connections, ensuring compliance and reliability of intranet access devices.
- Automatic deployment of policies to enable convenient operation and maintenance
Through real-time interactions of security policies with the Self-Secure management platform, the LSW5662-SE Series enables administrators to distribute threat disposals on a unified management interface, making sure the security policies take effects on a real time basis and simplifying network operation and maintenance.
- A wide temperature range of 0°C~70°C
The LSW5662-SE Series adopts an environment-enhanced design, which provides features such as a wide range of operating temperature (i.e., 0°C~70°C) and pressure, and lightning protection. This helps ensure highly reliable operation in complex electrical environments (e.g., LV well) and air-conditioning free deployment environments.
- Comprehensive IPv6 features
The LSW5662-SE Series Self-Secure switches support IPv4/IPv6 dual stack and IPv6 over IPv4 Tunnel (including manual Tunnel, 6to4 Tunnel, ISATAP Tunnel) as well as IPv6 layer 3 wire-speed forwarding. It can be flexibly deployed on a network with only IPv4 or IPv6, or with both IPv4 and IPv6, thus satisfying the transition requirements from IPv4 to IPv6.
| Product Name | LSW5662-28GT4XGS-SE | LSW5662-48GT4XGS-SE | LSW5662-24GP4XGS-SE | LSW5662-48GP4XGS-SE | |
|---|---|---|---|---|---|
| Service interface | 20 Gigabit electrical interfaces + 8 Gigabit Combo+4 10-Gigabit optical interfaces (SFP+) |
48 Gigabit electrical interfaces + 4 10-Gigabit optical interfaces (SFP+) | 16 Gigabit optical interfaces + 8 Gigabit Combo + 4 10-Gigabit optical interfaces (SFP+) |
48 Gigabit optical interfaces (SFP); 4 10-Gigabit optical interfaces (SFP+) | |
| Switching capacity | 758Gbps/7.58Tbps | 758Gbps/7.58Tbps | 758Gbps/7.58Tbps | 758Gbps/7.58Tbps | |
| Packet forwarding rate | 342Mpps | 372Mpps | 342Mpps | 372Mpps | |
| Expansion Slots | 1 pieces | ||||
| Interface Module | 2-port 40G optical interface module (QSFP), 8-port 10-Gigabit optical interface module (SFP+), 8-port 10-Gigabit Ethernet interface module, 1-port 40G optical interface module (QSFP),4-port 10-Gigabit optical interface module (SFP+), 2-port 10-Gigabit optical interface module (SFP+), 8-port Gigabit optical interface module (SFP),8 port Gigabit electrical interface module, 4 port Gigabit optical interface module (SFP) + 4 port Gigabit electrical interface module | ||||
| Protection againstintranet attacks | Support locating and blocking of IP spoofing, ARP spoofing, ARP flooding and other common network threats; Support identifying and blocking of intranet virus and Trojan horse spreading; Support IP scanning, UDP scanning, TCP scanning and other hacking behaviors; Support locating, alerting and blocking of the source host of intranet attacks; |
||||
| Device protection | upport automatic discovery and protection of IP cameras, entrance control, printers, and all-in-one devices in the network; Support real-time discovery and blocking of TP-Link, D-Link and other small routers; |
||||
| Loop suppression | Spot and block the switch’s own loop, downlink switch and HUB loop, and pinpoint loop interfaces and loop vlan | ||||
| User awareness | Support identification of the type of access terminals and access locations | ||||
| Dimension（W*D*H） | 440mm*400mm*44mm | 440mm*400mm*44mm | 440mm*400mm*44mm | 440mm*400mm*44mm | |
| Power supply | hot-plug, modular dual power supply, support AC/DC | ||||
| Power Consumption | 70W | 61W | 90W | 108W | |
| Operating environment | 0℃～70℃, 6KV interface lightning protection | ||||
| IP routing | Support layer 3 routing of IPv4 and IPv6; Support static routing;Support RIPv1/v2, OSPF, BGP, VRRP; Support RIPng, OSPFv3, BGP4+ for IPv6, and VRRPv3; Support policy-go-together; |
||||
| Virtualization | Support VSM virtualization | ||||
| Security features | Support locating and blocking of IP spoofing, ARP spoofing, ARP flooding and other common network threats; Support identifying and blocking of intranet virus and Trojan horse spreading; Support locating, alerting and blocking of the source host of intranet attacks; Support automatic discovery and protection of IP cameras, entrance control, printers, and all-in-one devices in the network; Support local and centralized authentication based on MAC address; Support local and centralized authentication based on 802.1x; Support local and centralized authentication based on Portal; Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection; Support port isolation, port security; Support broadcast storm suppression; Support SSH2.0; |
||||
| Management and Maintenance | Support RMON; Support IEEE 1588v2 PTP; Support real-time temperature detection and alarm; Support SNMP, CLI, Web management, and Unified Management Center (UMC); Support local and remote output of system logs, operation logs, commissioning and debugging information, etc. |
||||
*These specifications apply only to DPtech products available on the international market.
