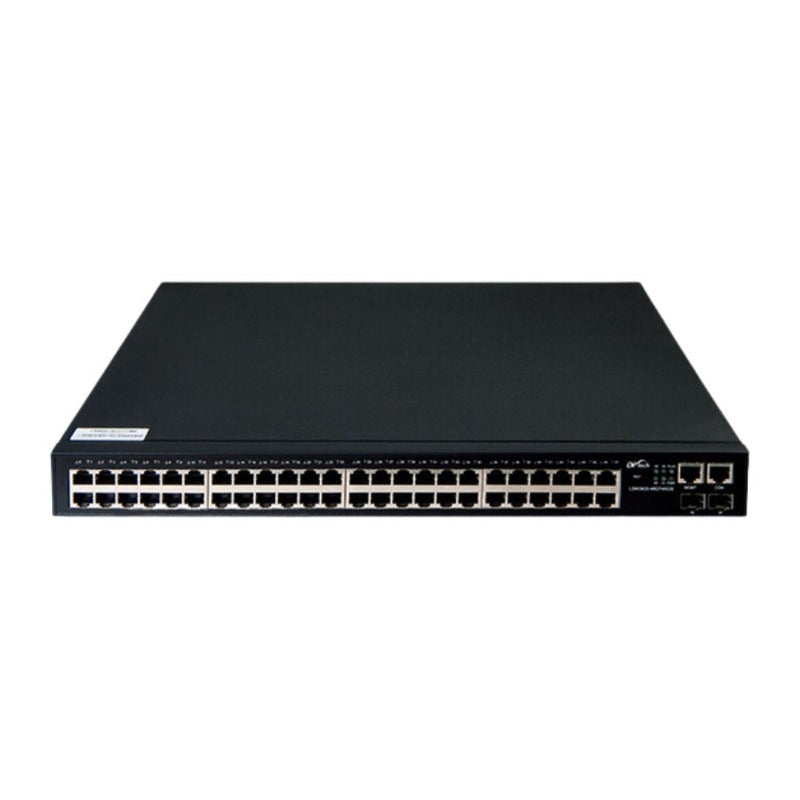

LSW3620 Series
LSW3620 Series
SKU: Part Number:
Out of stock
Price available upon request
DESCRIPTION & SPECIFICATIONS
As the next generation high performance 10-Gigabit Ethernet switches independently developed by DPtech, the LSW3620 Series provides high density Gigabit access and non-convergent 10 Gigabit uplink capabilities. Based on the industry’s leading high performance hardware architecture and DPtech’s ConPlat operating system, its features include sound layer 2 and 3 processing capabilities, enhanced access security and access control policy, VSM (Virtual Switching Matrix) N:1 VEM (Virtual Extension Matrix), vertical virtualization, low power consumption, and fanless quiet design. It is ideal for building the next generation Self-Secure, energy-efficient, and virtual secure networks.
- High density Gigabit access and 10-Gigabit uplink
With 24/48 high density 100M or Gigabit interfaces and 4 reinforced 10-Gigabit uplink interfaces, the LSW3620 Series enables convergence-free interconnection and meet the high performance and no congestion requirements for large secure networks.
- Virtual Switching Matrix (VSM)
The LSW3620 Series adopts Virtual Switching Matrix (VSM) technology, which performs virtualization of multiple physical devices into a single logical device for unified configuration and management.
- Full support of IPV4/IPv6 dual stack
Based on the leading ConPlat operating system, the LSW3620 Series supports IPV4/IPv6 dual stack, in addition to static routing, RIP, OSPF routing protocols of IPV4/IPv6. It can be flexibly deployed on a network with only IPv4 or IPv6, or with both IPv4 and IPv6, thus satisfying the transition requirements from IPv4 to IPv6.
- Sound security control
LSW3620 Series provides multiple authentication modes based on MAC address, 802.1x, and Portal, capable of meeting the authentication requirements for printers, mobile terminals, and desktop PCs. With a built-in authentication server, it also supports large-capacity local access authentication.
It supports dynamic or static binding of user identity, such as user account, IP, MAC, VLAN, and interface. It enables dynamic ACL distribution policy based on VLAN, which simplifies user configuration. The LSW3620 Series is provided with enhanced ACL rules by supporting large-capacity ingress and egress ACLs.
To address ARP attacks and ARP viruses, the primary threat of LAN security, the LSW3620 Series provides sound ARP protection by supporting ARP Detection, one-click ARP binding, authorized ARP, ARP source suppression, and ARP source address inspection, thus guarding against all APR attacks thoroughly. - Energy-efficient quiet design
With industry-leading energy-saving chips and compatibility with IEEE 802.3az EEE (Energy Efficient Ethernet) technology, the LSW3620-24GT4XGS enables automatic adjustment of energy usage according to network connection utilization. For idle Ethernet ports, the energy consumption at both ends will be reduced. When data transmission is started, normal power supply will be resumed. In this way, it realizes intelligent adjustment of power supply requirements.
As the industry’s only 10-Gigabit fanless switch, the LSW3620-24GT4XGS adopts a fanless quiet design, which not only minimizes noise in environments, but also improves the device reliability by avoiding single-point failure caused by fans.
| Product Model | LSW3620-24GT4XGS | LSW3620-48GT4XGS |
|---|---|---|
| Service interface | 24 Gigabit RJ45+4 10-Gigabit SFP+ | 48 Gigabit RJ45+4 10-Gigabit SFP+ |
| Switching capacity | 336Gbps/3.36Tbps | 336Gbps/3.36Tbps |
| Packet forwarding rate | 108Mpps/268Mpps | 144Mpps/268Mpps |
| Weight | 2.4kg | 3.7kg |
| Power supply | 54W (AC 110~220V) | 54W (AC 110~220V) |
| Host power consumption | Static: 14.4W Full load: 20.6W | Static: 27.5W Full load: 39W |
| Operating environment | -10℃~55℃, interface lightning protection | -10℃~55℃, interface lightning protection |
| Fan | Fanless | with fan |
| MAC | Support static, dynamic, black hole MAC entries Support source MAC address filtering | |
| VLAN | Support 4K 802.1Q VLAN Support VLAN based on MAC/ IP subnet/authentication policy/interface VLAN Support Voice VLAN Support QinQ |
|
| Port features | Support port aggregation, port mirroring, RSPAN, port isolation, port traffic identification | |
| Spanning tree | Support STP, RSTP, MSTP | |
| DHCP | Support DHCP Client, DHCP Relay, DHCP Snooping | |
| Virtualization | Support VSM (Virtual Switching Matrix) N:1 virtualization technology, which performs virtualization of multiple physical devices into a single logical device | |
| IP routing | Support static routing, RIPv1/2, OSPF Support RIPng, OSPFv3 Support policy-go-together |
|
| Multicast | Support IGMP Snooping, IGMP Proxy, GMRP Support PIM-SM/PIM-SSM/PIM-DM |
|
| ACL | Support ACL rules based on VLAN, MAC address, IP address, TCP/UDP port number | |
| QoS | Support 8 priority queues per port Support traffic classification based on 802.1p/DSCP/TOS Support speed limit on ports and streams Support SP, WRR, SP + WRR queue scheduling | |
| Security features | Support local and centralized authentication based on MAC address Support local and centralized authentication based on 802.1x Support local and centralized authentication based on Portal Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection Support port isolation, port security Support broadcast storm suppression Support SSH2.0 |
|
| Management and Maintenance | Support MON Support IEEE 1588v2 PTP Support real-time temperature detection and alarm Support SNMP, CLI, Web management, and Unified Management Center (UMC) Support local and remote output of system logs, operation logs, debugging information |
|
These specifications apply only to DPtech products available on the international market.
