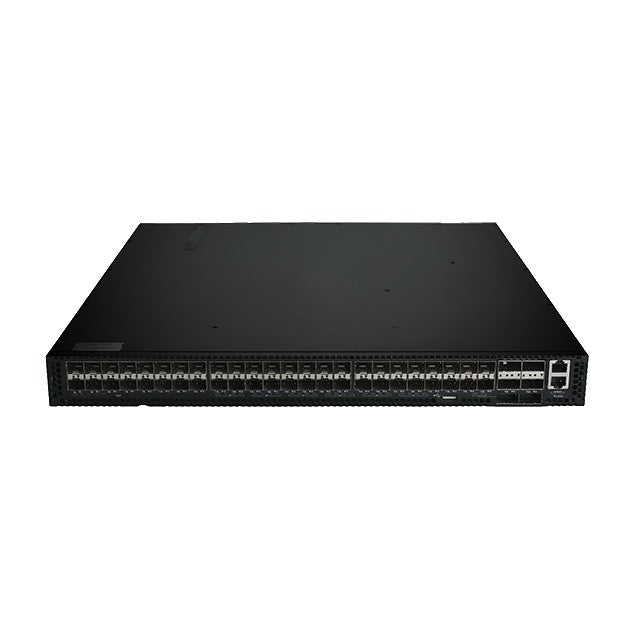

LSW6600 10G/40G Fixed Port Switch
LSW6600 10G/40G Fixed Port Switch
SKU: Part Number:
Out of stock
Price available upon request
DESCRIPTION & SPECIFICATIONS
DPtech LSW6600 Series Switches are the next generation high-density 10G Ethernet switches presented by DPtech. Based on the industry’s leading 40G/100G hardware architecture and DPtech’s ConPlat operating system, the Series is equipped with virtualization technology and rich data center features. It provides up to 48 wire-speed 10G interfaces on 1U equipment. It also has 40G uplink interfaces to meet the requirements of high-density 10G access and 40G/100G uplink in TOR deployment of the next generation data centers. In addition to 10G access switches for cloud data centers, the LSW6600 can also serve as a core for small- or medium-sized secure networks or a aggregation equipment for large-scale secure networks.
- High-capacity high-density 10G interface
The LSW6600 Series provides a maximum switching capacity of 2.56Tbps, 1200Mpps forwarding performance, and full wire-speed switching architecture. It is the industry’s first-class 1U cassette switch, with up to 48 SFP+ optical interfaces and 6 40G QSFP+ interfaces. In 40G mode or 4 10G mode, the 40G QSFP+ interfaces can be expanded to provide the whole unit with up to 72 10G interfaces capability, meeting the challenge of high density and high bandwidth access in next-generation cloud computing data centers.
- Rich data center features
The LSW6600 Series is equipped with the TRILL (Transparent Interconnection of Lots of Links) technology to enable construction of ultra-large layer 2 networks consisting of more than 10,000 physical servers. In combination of ISIS routing, the TRILL technology calculates the forwarding paths to address the issue of a single forwarding path and loops, thus improving bandwidth utilization to 100%. In this way, it significantly enhances network stability and realizes quick convergence of the Layer 2 network.
Compatible with VXLAN, 802.3 Qbg, DCB (Data Center Bridging), PFC (Priority-based Flow Control) and ETS (Enhanced Transmission Selection), the LSW660 Series enables a highly integrated network combining traditional front-end server and back-end storage. - Virtual Switching Matrix (VSM)
The LSW6600 Series adopts Virtual Switching Matrix (VSM) technology, which performs virtualization of multiple physical devices into a single logical device for unified configuration and management.
- Sound security control policy
With a built-in authentication server, the LSW6600 Series provides multiple authentication modes based on MAC address, 802.1x, and Portal. It supports dynamic or static binding of user identity, such as user account, IP, MAC, VLAN, and interface. Dynamic distribution of policies is supported.
The LSW6600 Series is provided with enhanced ACL by supporting large-capacity ingress and egress ACLs. It also enables ACL distribution based on VLAN, which simplifies user configuration and avoids waste of ACL resources. - Rich QoS policy
The LSW6600 Series supports traffic identification on interfaces. It provides multiple stream classification based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN. With priority queues based on hardware, it is compatible with multiple queue scheduling algorithms such as SP, WRR, and SP+WPP. Support congestion management and rate limits on interfaces.
- Full support of IPV4/IPv6 dual stack
The LSW6600 Series supports IPv4/IPv6 dual stack and IPv6 over IPv4 Tunnel (including manual Tunnel, 6to4 Tunnel, ISATAP Tunnel) as well as IPv6 layer 3 wire-speed forwarding. It can be flexibly deployed on a network with only IPv4 or IPv4, or with both IPv4 and IPv4, thus satisfying the transition requirements from IPv4 to IPv6.
| Product Name | LSW6600-48XGS6QXP | LSW6600-8GT24XGS |
|---|---|---|
| Service interface | 48 10-Gigabit optical interfaces (SFP+) + +6 40-Gigabit optical interfaces (QSFP+) | 8 Gigabit electrical interfaces (RJ45) + +24 10-Gigabit optical interfaces (SFP+) |
| Management interfaces | Console port | |
| Switching capacity | 2.56Tbps/40.96Tbps | 2.56Tbps/36Tbps |
| Forwarding performance | 1200Mpps/1740Mpps | 372Mpps |
| Delay | <6us | |
| Size of MAC address table | 128K | |
| VLAN | 4K | |
| Maximum length of long frame | 13K | 12K |
| Dimension (width * depth * height) (in mm) | 440×690×44 | 440×420×44 |
| Power supply | Modular power supply redundancy | Solidified power supply redundancy |
| Power Consumption | 250W | 130W |
| Operating environment | 0℃～45℃ | |
| Interface management | Support Port trunk, basic port functions, LACP, etc. | |
| Spanning tree | Support STP, RSTP, MSTP | |
| DHCP | Support DHCP Client, DHCP Relay, DHCP Snooping | |
|
IP routing |
IPv4: Static routing, RIP v1/2, OSPF, BGP, policy-go-together, etc. IPv6: IPv6 static routing, RIPng, OSPFv3, BGP4+, transition tunnel technology from IPv4 to IPv6, etc. | |
| Virtualization features | Support VSM virtualization | |
|
Multicast features |
Support GMRP Support IGMP Snooping, IGMP Proxy; Support PIM-SM, PIM-SSM, PIM-DM | |
| Data Center Features | Support 802.1Qbg, TRILL, VXLAN, etc. | |
| QoS features | Support traffic classification based on 802.1p/DSCP/TOS Support speed limit on ports and streams Support SP, WRR, SP + WRR queue scheduling | |
| Security features | Support local and centralized authentication based on MAC address Support local and centralized authentication based on 802.1x Support local and centralized authentication based on Portal Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection; Support port isolation, Static Port Access Control Support broadcast storm suppression Support SSH2.0 |
|
| High reliability | Compatible with fast ring network recovery protocol (FRRP) and fast link recovery protocol (FLRP) Support VRRP | |
| Management and Maintenance | Support MON Support IEEE 1588v2 PTP Support real-time temperature detection and alarm Support SNMP, CLI, Web management, and Unified Management Center (UMC) Support local and remote output of system logs, operation logs, debugging information | |
*These specifications apply only to DPtech products available on the international market.
