Extreme Networks

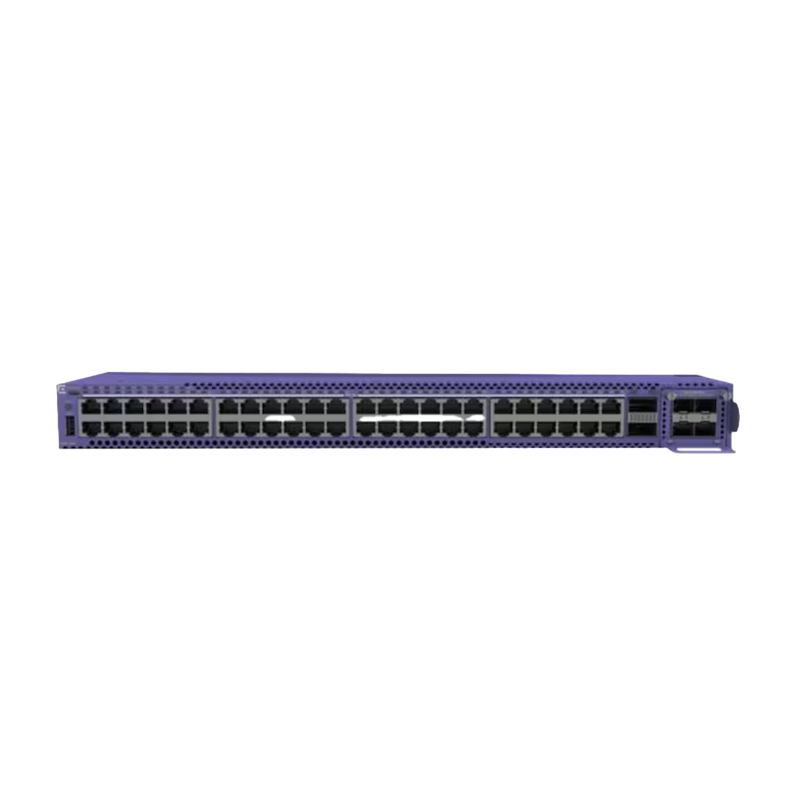

5520-12MW-36W Complete Set

5520-12MW-36W Complete Set


Low stock: 1 left

Regular price RM55,832.00
Regular price RM0.00 Sale price RM55,832.00
Sale Sold out
Shipping calculated at checkout.

UOM: Unit Set

Come with :-

  • 715 Watt AC PoE Power Supply Module - Front to Back airflow (XN-ACPWR-715W-FB)
  • Power Cord, 10A, UK, BS 1363, IEC320-C15 (10096)
  • PW NBD AHR 5520-12MW-36W, 1y (95504-5520-12MW-36W)
  • vCare Extreme PW-RPL85NBD 5520-12MW-36W, 1y (VC5520-12MW-36W-PW-RPL1Y)

Installation and Configuration Services - Pls request quote if required.

48-port 90w PoE with 12 ports Multi-Gigabit Switch:-

  • 12 x 100M/1/2.5/5GBASE-T 802.3bt (90W) PoE ports
  • 36 x 10/100/1000BASE-T 802.3bt (90W) PoE ports
  • 2 x Stacking/QSFP28 ports.  (unpopulated)
  • 1 x Serial console port (RJ-45)
  • 1 x 10/100/1000BASE-T out-of-band management port
  • 2 x USB A ports for management or external USB flash
  • 1 x USB Micro-B console port
  • 1 x VIM slot
  • 2 unpopulated modular PSU slots
  • Base software license.


  • Intuitive and centralized cloud- based network management with ExtremeCloudTM IQ and ExtremeCloud IQ - Site Engine.
  • Fabric-enabled operations with Extreme Fabric Connect for simplified and secure network provisioning and automation.
  • 200Gb per unit stacking of up to eight switches.
  • Dual Hot-swappable, redundant power supplies and fans.
  • Switching Bandwidth:792 Gbps.
  • Forwarding Rate: 589.3.
  • Support 40G/50G/100G backbone Uplink.

Expansion VIM modules:

  • 4-port SFP+ module
  • 4-port SFP28 module MACsec capable

    Ethernet Fabric Services
    The 5520 supports a variety of Ethernet Fabric services, including Extreme’s Fabric Connect when running Fabric Engine and Extreme’s IP Fabric when running Switch Engine. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 Fabric services.

    Extreme’s Fabric Connect and IP Fabric enable the creation of virtualized networks that automate network operations, simplify network provisioning, and enhance security, all while reducing the strain on network and IT personnel.

    High-Performance Stacking
    The 5520 Series supports high-speed 200Gbps stacking when running Switch Engine via its two built-in QSFP28 stacking ports. Up to eight systems can be stacked using qualified QSFP+ direct attach cables and optical transceivers.

    Cloud-Based Network Management
    The 5520 can be managed by ExtremeCloud IQ and ExtremeCloud IQ—Site Engine for centralized switch management, giving you a consolidated view of users, devices, and applications across wired and wireless networks for efficient inventory and network topology management.

    ExtremeCloud IQ enables zero touch provisioning, allowing you to quickly bring new 5520 switches online.


    Hardare Installation Guide
