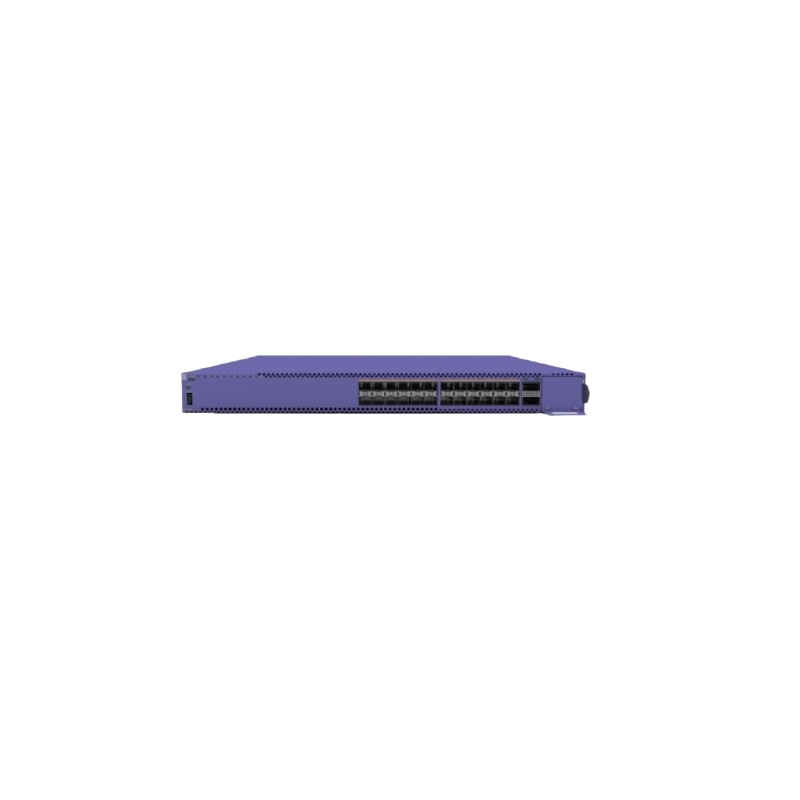

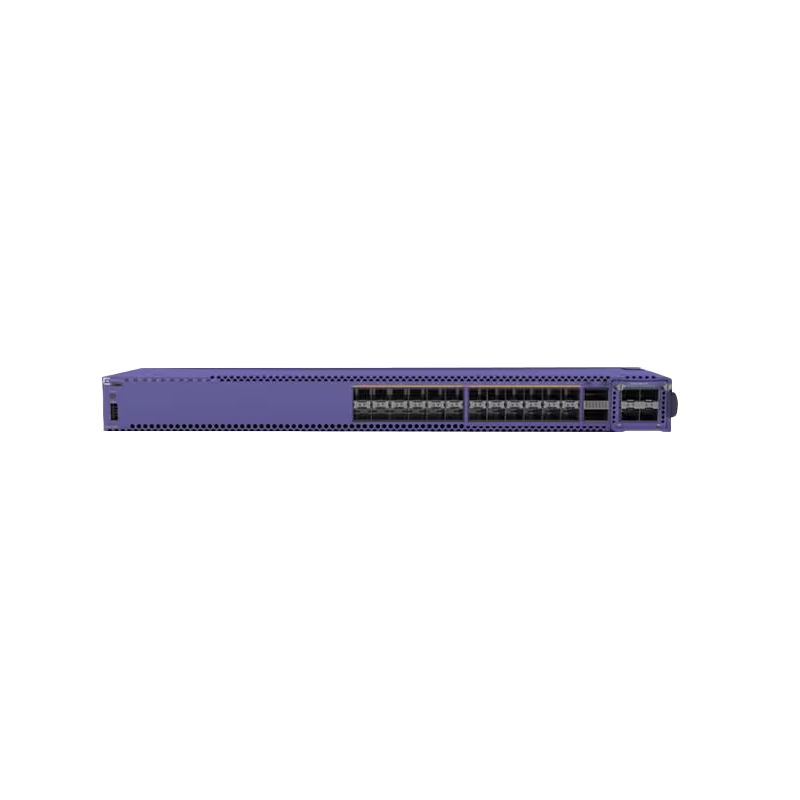

5520-24X

• 24x 100M/1G/10GBASE-X (SFP+) ports (unpopulated)
• 2 x Stacking/QSFP28 ports. (unpopulated)
• 1 x Serial console port (RJ-45)
• 1 x 10/100/1000BASE-T out-of-band management port
• 2 x USB A ports for management or external USB flash
• 1 x USB Micro-B console port
• 1 x VIM slot
• 2 unpopulated modular PSU slots
• Base software license.

Highlights:

• Intuitive and centralized cloud- based network management with ExtremeCloudTM IQ and ExtremeCloud IQ - Site Engine.
• Fabric-enabled operations with Extreme Fabric Connect for simplified and secure network provisioning and automation.
• 200Gb per unit stacking of up to eight switches.
• Dual Hot-swappable, redundant power supplies and fans.
• Switching Bandwidth:792 Gbps.
• Forwarding Rate: 589.3.
• Support 40G/50G/100G backbone Uplink.

Expansion VIM modules:

• 4-port SFP+ module
• 4-port SFP28 module MACsec capable

Ethernet Fabric Services
The 5520 supports a variety of Ethernet Fabric services, including Extreme’s Fabric Connect when running Fabric Engine and Extreme’s IP Fabric when running Switch Engine. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 Fabric services.

High-Performance Stacking
The 5520 Series supports high-speed 200Gbps stacking when running Switch Engine via its two built-in QSFP28 stacking ports. Up to eight systems can be stacked using qualified QSFP+ direct attach cables and optical transceivers.

Cloud-Based Network Management
The 5520 can be managed by ExtremeCloud IQ and ExtremeCloud IQ—Site Engine for centralized switch management, giving you a consolidated view of users, devices, and applications across wired and wireless networks for efficient inventory and network topology management.

ExtremeCloud IQ enables zero touch provisioning, allowing you to quickly bring new 5520 switches online.
