DPtech

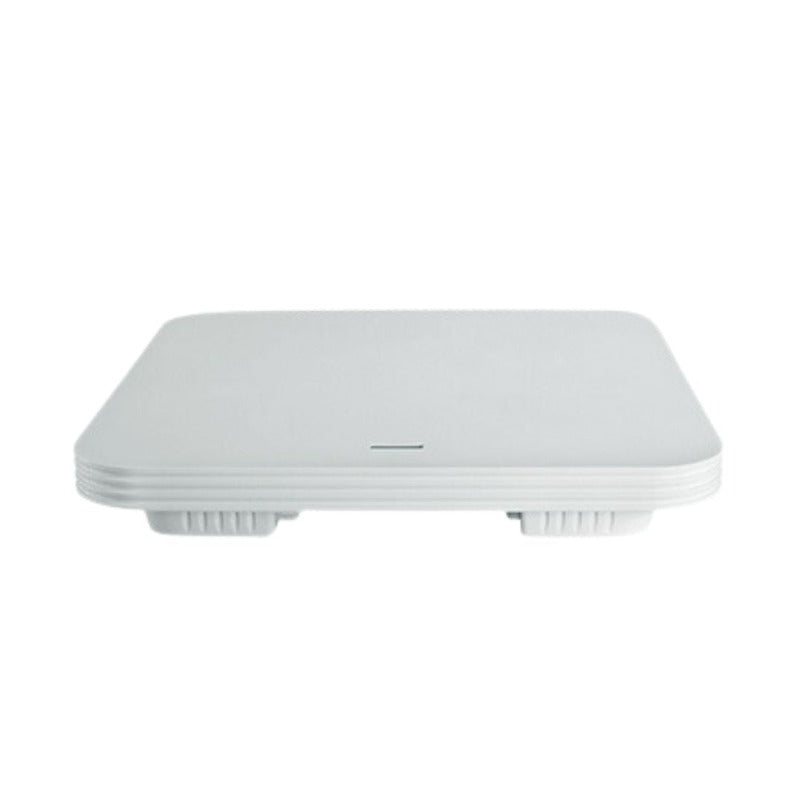

AP1000-1C

AP1000-1C

SKU:

Out of stock

Shipping calculated at checkout.

UOM:

A high-speed wireless access device based on 802.11n technology, the AP1000 Series can provide more than 6 times the wireless access rate of traditional 802.11a/b/g networks with a greater wireless coverage. The Series provides Fat and Fit modes to facilitate a smooth upgrade of the user's wireless network, protecting user’s investment. In Fit mode, it needs to work with DPtech ACS6000 Series wireless controller to build a network. In Fat mode, it can work independently.

AP1000 Series wireless access device can be widely used in various wireless scenarios, such as office buildings, schools, hotels, hospitals, and wireless cities, with multiple installation methods available: ceiling mounted, wall mounted, desktop placement and crane structures.

  • High-speed wireless access
    In compliance with the 802.11n protocol, the AP1000 Series is provided with a modular design. With a 300Mbps wireless access rate at single radio frequency, and a 600Mbps wireless access rate at dual radio frequency, it outperforms traditional 802.11a/b/g products by about 6 times of rate. It can provide higher performance wireless access services in terms of coverage, access intensity, and operational stability and help bring down users’ investment.

  • Green and energy efficient design
    Integrating a series of energy-saving technologies, the AP1000 Series avoids unwanted energy consumption by using the Green AP technology to ensure a single antenna transceiver in standby mode and using the packet-by-packet power control technology to dynamically adjust the packet sending power based on user’s position. In addition, AP can enable the scheduled shutdown of RF module with the help of a wireless controller, thus further reducing the overall energy consumption.

  • Fat/Fit AP Integration
    AP1000 Series support flexible switching between the Fat and Fit modes based on network planning. With a relatively small size of initial wireless network, AP1000 Series wireless devices in Fat mode will do. With the continuous scalability in the user's network, ACS6000 Series wireless controllers help reduce management complexity of a network consisting of dozens or even hundreds of AP1000 Series wireless devices, making it possible to manage all AP1000 devices from a centralized location. Fat/Fit AP integration is conducive to successful transformation from wireless network to large network, which serves as powerful protection for users’ investments while facilitating the smooth expansion and upgrade of carrier-grade large wireless network

  • Local forwarding
    When deployed in WAN environment in Fit mode, AP1000 Series has its wireless devices deployed in branches and the controllers in the headquarters. User data is forwarded through wireless controllers in a centralized manner, resulting in low forwarding efficiency. AP1000 Series can convert data packets into a standard Ethernet format message, which greatly improves forwarding efficiency.

  • Support wireless intrusion detection/defense (WIDS/WIPS)
    In Fat mode, AP1000 Series provides access control features such as blacklist and whitelist of wireless users. In Fit mode, AP1000 Series can work with DPtech ACS6000 Series wireless controllers, enabling Rogue detection, intrusion detection, blacklist and whitelist, and other WIDS/WIPS features.

  • Induced roaming
    AP1000 Series provides induced roaming function, which actively guides a sticky terminal, if found, to the best connection point. It helps effectively improve roaming sensitivity of the sticky terminal, reduce network delay, and maximize wireless network capacity.

  • Support SSID in Chinese
    AP1000 Series supports Chinese SSID to cater to the using habits of various users. Users can specify an SSID with a maximum of 32 Chinese characters, or an SSID consisting of a combination of Chinese and English characters.

  • Integrated wired and wireless management
    Based on the UMC platform, DPtech’s full range of wireless products realizes integrated management of wired, wireless, security and application delivery across the network. With a simple and friendly user interface for wireless service managers, UMC provides comprehensive management of wireless equipment regarding interfaces, faults, performances, software versions, profiles, accessing users, etc.

Product Specifications

Attributes

AP1000-1C

AP1000-1W

Positioning

Ceiling/wall-mounted AP

Panel/recessed AP

Working frequency

2.4GHz

2.4GHz

Transmission protocol

802.11b/g/n

802.11b/g/n

Transmission rate

300Mbps

300Mbps

Type of antenna

Built-in antenna

Built-in antenna

Service Port

2*RJ45 ports

2*RJ45 ports

Transmitting power

22dBm

17dBm

POE

802.3af/at

802.3af/at

Local power

Supported

- -

Power Consumption

≤7.5W

≤7.5W

Dimension (length * width * height)(in mm)

200mm*200mm*35.4mm

86mm*86mm*31mm

Ambient Temperature

Operating Temperature: 0 oC~40 oC Storage Temperature: -20oC~70oC

Operating Temperature: 0 oC~40 oC Storage Temperature: -20oC~70oC

Ambient Humidity

5%~95% (non-condensing)

5%~95% (non-condensing)

MTBF

>250000H

>250000H

Modulation technology

OFDM : BPSK@6/9MbpsQPSK@12/18Mbps16-QAM@24Mbps 64-QAM@48/54Mbps
DSSS : DBPSK@1MbpsDQPSK@2MbpsCCK@5.5/11Mbps MIMO-OFDM : BPSKQPSK16QAM64QAM

OFDM : BPSK@6/9MbpsQPSK@12/18Mbps16-QAM@24Mbps 64-QAM@48/54Mbps
DSSS : DBPSK@1MbpsDQPSK@2MbpsCCK@5.5/11Mbps MIMO-OFDM : BPSKQPSK16QAM64QAM



Software Specifications

Attributes


AP1000-1C

AP1000-1W

Virtual AP


32 pieces

16 pieces

Security policy

Access authentication

Support MAC, 802.1x, Portal, PSK and other authentication modes




Support SMS authentication




Support non-sending authentication



Encryption

Support 64/128-bit WEP, TKIP, WAPI, CCMP and other encryption methods



User isolation

Support layer 2 isolation of wireless users




Support SSID-based wireless user isolation




Support user isolation under the same SSID



Data frame filtering

Support whitelist and blacklist



Hide SSID

Supported


Smart switch

Basis: signal intensity, bit error rate, whether neighboring APs work properly, etc.



Functions of Layers 2 and 3

IP address settings

Support static IP address or DHCP acquisition of IP address



Routing Protocols

Support static routing



Forwarding modes

Support centralized and local forwarding




Roaming

Support Layers 2 and 3 roaming



Multicast

Supported


Service Quality

802.11e

Support WMM



Traffic Limitations

Traffic limitations are available based on SSID uplink and downlink traffic



QoS policy mapping

Support mapping SSID/VLAN to QoS policy


Signal quality

Transmitting power adjustment

Support manual power adjustment




Support automatic power adjustment; AP may adjusts power according to nearby wireless network conditions



Channel settings

Support manual channel settings




Support automatic channel adjustment; AP may adjusts channel according to nearby wireless network conditions



Spectrum protection

Support spectrum protection


Management and Maintenance

Network management

Support management through SSH, Telnet, and FTP/TFTP




Support Web management



Switch between Fat/Fit

Support local switching of modes



Watch Dog

Support real-time monitoring of running status to avoid downtime



Logs

Supported



Alerts

Supported



Fault detection

Supported



Statistics

Supported


Security functions

Terminal whitelist

Only terminals in the whitelist are allowed to access the wireless network



AP Self-Secure

Anti-hijacking



Security protection

Anti-DDoS attacks
