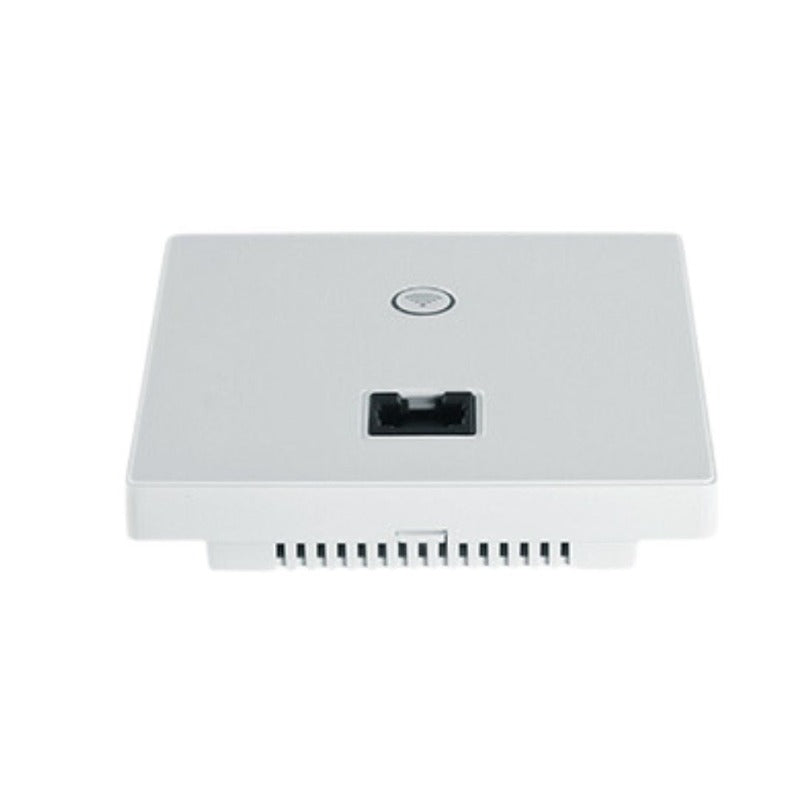

AP1000-1W

• High-speed wireless access
  In compliance with the 802.11n protocol, the AP1000 Series is provided with a modular design. With a 300Mbps wireless access rate at single radio frequency, and a 600Mbps wireless access rate at dual radio frequency, it outperforms traditional 802.11a/b/g products by about 6 times of rate. It can provide higher performance wireless access services in terms of coverage, access intensity, and operational stability and help bring down users’ investment.

• Green and energy efficient design
  Integrating a series of energy-saving technologies, the AP1000 Series avoids unwanted energy consumption by using the Green AP technology to ensure a single antenna transceiver in standby mode and using the packet-by-packet power control technology to dynamically adjust the packet sending power based on user’s position. In addition, AP can enable the scheduled shutdown of RF module with the help of a wireless controller, thus further reducing the overall energy consumption.

• Fat/Fit AP Integration
  AP1000 Series support flexible switching between the Fat and Fit modes based on network planning. With a relatively small size of initial wireless network, AP1000 Series wireless devices in Fat mode will do. With the continuous scalability in the user's network, ACS6000 Series wireless controllers help reduce management complexity of a network consisting of dozens or even hundreds of AP1000 Series wireless devices, making it possible to manage all AP1000 devices from a centralized location. Fat/Fit AP integration is conducive to successful transformation from wireless network to large network, which serves as powerful protection for users’ investments while facilitating the smooth expansion and upgrade of carrier-grade large wireless network

• Local forwarding
  When deployed in WAN environment in Fit mode, AP1000 Series has its wireless devices deployed in branches and the controllers in the headquarters. User data is forwarded through wireless controllers in a centralized manner, resulting in low forwarding efficiency. AP1000 Series can convert data packets into a standard Ethernet format message, which greatly improves forwarding efficiency.

• Support wireless intrusion detection/defense (WIDS/WIPS)
  In Fat mode, AP1000 Series provides access control features such as blacklist and whitelist of wireless users. In Fit mode, AP1000 Series can work with DPtech ACS6000 Series wireless controllers, enabling Rogue detection, intrusion detection, blacklist and whitelist, and other WIDS/WIPS features.


• Induced roaming
  AP1000 Series provides induced roaming function, which actively guides a sticky terminal, if found, to the best connection point. It helps effectively improve roaming sensitivity of the sticky terminal, reduce network delay, and maximize wireless network capacity.


• Support SSID in Chinese
  AP1000 Series supports Chinese SSID to cater to the using habits of various users. Users can specify an SSID with a maximum of 32 Chinese characters, or an SSID consisting of a combination of Chinese and English characters.


• Integrated wired and wireless management
  Based on the UMC platform, DPtech’s full range of wireless products realizes integrated management of wired, wireless, security and application delivery across the network. With a simple and friendly user interface for wireless service managers, UMC provides comprehensive management of wireless equipment regarding interfaces, faults, performances, software versions, profiles, accessing users, etc.

DPtech AP1000 Series based on 802.11n Wireless Access Device data sheet

Product Specifications

Software Specifications
