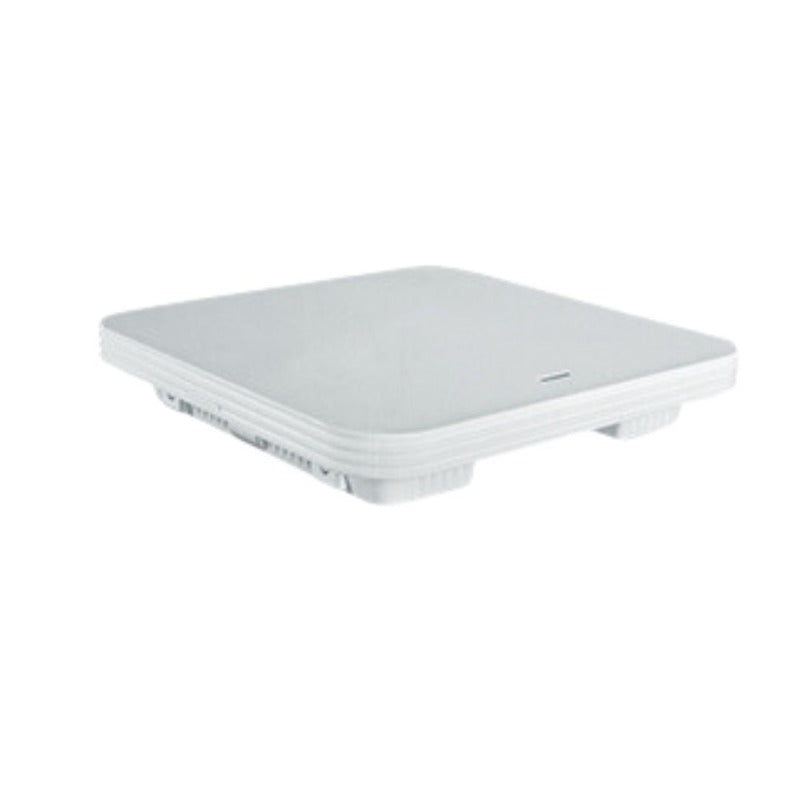

AP1000-2C
AP1000-2C
SKU: Part Number:
Out of stock
Price available upon request
DESCRIPTION & SPECIFICATIONS
DPtech AP2000 Series is a wireless access device based on 802.11ac. With an access rate of Gigabit, it marks the upgrade from 100M to the Gigabit era. AP2000 Series adopts a dual-frequency design of 2.4GHz/5GHz, compatible with the 802.11a/b/g/n standards to realize a smooth transition to 802.11ac. It provides two working modes: Fat and Fit. In Fat mode, the AP2000 Series can work independently, while in Fit mode, it needs to work with DPtech ACS6000 series wireless controllers to establish a network.
AP2000 Series wireless access device can be widely used in various wireless scenarios, such as office buildings, schools, hotels, hospitals, commerce and finance, with multiple installation methods available: ceiling mounted, wall mounted, recessed, desktop placement and crane structures.
- High-speed wireless access
With the latest 802.11ac wireless chip and the MU-MIMO technology, the AP2000 Series can not only provide excellent performance in 2.4G compared with traditional 802.11n wireless access device, but also high speed access in 5G frequency. When both frequencies are enabled, the device will allow a maximum access rate of 1.75Gbps.
- Fat/Fit AP Integration
The AP2000 Series can switch flexibly between Fat and Fit modes according to various requirements of application scenarios. With fewer wireless access points, the AP2000 Series can establish a network in Fat mode. With more access points, it can work in Fit mode, and perform centralized management together with DPtech’s ACS6000 Series wireless controllers. Fat/Fit AP integration is conducive to successful transformation of wireless networks, which serves as powerful protection for users’ investments.
- Local forwarding
AP2000 Series (Fit mode) supports local forwarding, saving wireless controllers from any traffic bottleneck of wireless network. It can directly convert data packet into messages in standard Ethernet format, which will then enter the wired network for data exchange. Local forwarding greatly alleviates strain on wireless controllers by meeting low latency and high real-time performance requirements of 802.11ac network for large traffic transmission.
- Multicast enhancement technology
Traditional 802.11 protocols send packets with a low rate (1 Mbps), which is subject to high latency and large packet losses in e-schoolbags, conference venues and other real-time wireless applications, leaving users with poor experience. With DPtech’s multicast enhancement technology, low-rate multicast packets can be converted into high-rate unicast packet for transmission, providing smooth and stable wireless experience for every user.
-
Zero configuration installation
In Fit mode, the AP2000 Series requires no settings prior to installation, and all configurations can be downloaded automatically from the wireless controller. It significantly brings down users ’ implementation and maintenance costs. -
ConvenientPower-over-EthernetPort
Compatible with power over Ethernet standard protocol (802.3af/802.3at), the AP2000 Series enables remote power supply with a PoE switch or PoE module. Therefore, there is no need to deploy a dedicated power supply on site for wireless access devices, effectively addressing any inconvenience caused in ceiling-mounted and outdoor scenarios. -
Support wireless intrusion detection/defense (WIDS/WIPS)
In Fat mode, AP2000 Series provides access control features such as blacklist and whitelist of wireless users. In Fit mode, AP2000 Series can work with DPtech ACS6000 Series wireless controllers, enabling Rogue detection, intrusion detection, blacklist and whitelist, and other WIDS/WIPS features. -
Induced roaming
AP2000 Series provides induced roaming function, which actively guides a sticky terminal, if found, to the best connection point. It helps effectively improve roaming sensitivity of the sticky terminal, reduce network delay, and maximize wireless network capacity. -
Support SSID in Chinese
AP2000 Series supports Chinese SSID to cater to the using habits of various users. Users can specify an SSID with a maximum of 32 Chinese characters, or an SSID consisting of a combination of Chinese and English characters. -
Integrated wired and wireless management
Based on the UMC platform, DPtech ’ s full range of wireless products realizes integrated management of wired, wireless, security and application delivery across the network. With a simple and friendly user interface for wireless service managers, UMC provides comprehensive management of wireless equipment regarding interfaces, faults, performances, software versions, profiles, accessing users, etc.
Indoor wireless AP
| Attributes | AP2000-2C | AP2000-3C | AP2000-2W | |
|---|---|---|---|---|
| Positioning | Ceiling/wall-mounted AP | Ceiling/wall-mounted AP | Recessed AP | |
| Working frequency | 2.4G与5GHz | |||
| Transmission protocol | 802.11a/b/g/n 802.11ac wave1/wave2 | |||
| Number of spatial streams | 2 spatial streams, 2X2 MU-MIMO | 3 spatial streams, 3X3 MU-MIMO | 2 spatial streams, 2X2 MU-MIMO | |
| Transmission rate | 1.167Gbps | 1.75Gbps | 1.167Gbps | |
| Type of antenna | Built-in antenna | |||
| Port | 2 RJ45 ports | 2 RJ45 ports | 4 Gigabit RJ45 downlink ports, 1 Gigabit RJ45 uplink port, 1 pair of pass-through (Telephone) RJ45 port | |
| Transmitting power | 22dBm | 22dBm | 18dBm | |
| POE | Compatible with 802.3af/802.3at power supply | |||
| Local power | Supported | Supported | Supported | |
| Power Consumption | ≤12W | ≤12W | ≤12W | |
| Green and energy efficiency | Scheduled shutdown of wireless access services makes sure energy-saving operations | |||
| Dimension (length * width * height) (in mm) | 200*200*35.4 | 200*200 *35.4 | 86x115*44.5 | |
| Modulation technology | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps MIMO-OFDM (11n): MCS 0-15 MIMO-OFDM (11ac): MCS 0-9 | |||
| Ambient Temperature | Operating Temperature: 0 ºC～40 ºC Storage Temperature: -20ºC～70ºC | |||
| Ambient Humidity | 5%~95% (non-condensing) | |||
| MTBF | >250000H | |||
Outdoor wireless AP
| Attributes | AP2000-2X |
|---|---|
| Positioning | Outdoor Industrial Dual Band AP |
| Working frequency | 802.11b/g/n: 2.4 GHz 802.11a/n/ac: 5.1GHz/5.8 GHz |
| Transmission rate | 1.167Gbps |
| Type of antenna and port | External antenna 1 Gigabit electrical interface and 1 Gigabit optical interface |
| Transmitting power | 22dBm |
| POE | Compatible with 802.3af/802.3at power supply |
| Power Consumption | ≤22W |
| Green and energy efficiency | Scheduled shutdown of wireless access services makes sure energy-saving operations |
| (length * width * height) (in mm) | 220mm*220mm*100mm |
|
Modulation technology |
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps MIMO-OFDM (11n): MCS 0-15 MIMO-OFDM (11ac): MCS 0-9 |
| Protection level | IP67 |
| Ambient Temperature | Operating Temperature: -40ºC～50ºC Storage Temperature: -40ºC～70ºC |
| Ambient Humidity | 5%~95% (non-condensing) |
| MTBF | >250000H |
Software Specifications
| Attributes | AP2000-2C | AP2000-3C | AP2000-2W | AP2000-2X | |||
|---|---|---|---|---|---|---|---|
| Virtual AP | 32 pieces | 32 pieces | 32 pieces | 32 pieces | |||
| Connected users allowed as a whole unit | 256 | 384 | 256 | 256 | |||
| Security policy | Access authentication | Support MAC, 802.1x, Portal, PSK and other authentication modes | |||||
| Support SMS authentication | |||||||
| Support non-sending authentication | |||||||
| Encryption | Support 64/128-bit WEP, TKIP, WAPI, CCMP and other encryption methods | ||||||
| User isolation | Support layer 2 isolation of wireless users | ||||||
| Support SSID-based wireless user isolation | |||||||
| Support user isolation under the same SSID | |||||||
| Data frame filtering | Support whitelist and blacklist | ||||||
| 802.11w | Supported | ||||||
| Hide SSID | Supported | ||||||
| Basis | |||||||
| Smart switch | signal intensity, bit error rate, whether neighboring APs work properly, etc | ||||||
| Functions of Layers 2 and 3 | IP address settings | Support static IP address or DHCP acquisition of IP address | |||||
| Routing Protocols | Support static routing | ||||||
| Forwarding modes | Support centralized and local forwarding | ||||||
| Roaming | Support Layers 2 and 3 roaming | ||||||
| Multicast | Supported | ||||||
| Service Quality | 802.11e | Support WMM | |||||
| Traffic Limitations | Traffic limitations are available based on SSID uplink and downlink traffic | ||||||
| QoS policy mapping | Support mapping SSID/VLAN to QoS policy | ||||||
| Signal quality | Transmitting power adjustment | Support manual power adjustment | |||||
| Support automatic power adjustment; AP may adjusts power according to nearby wireless network conditions | |||||||
| Channel settings | Support manual channel settings | ||||||
| Support automatic channel adjustment; AP may adjusts channel according to nearby wireless network conditions | |||||||
| Spectrum protection | Support spectrum protection | ||||||
| Management and Maintenance | Network management | ||||||
| Support management through SSH, Telnet, and FTP/TFTP | |||||||
| Support Web management | |||||||
| Switch between Fat/Fit | Support local switching of modes | ||||||
| Watch Dog | Support real-time monitoring of running status to avoid downtime | ||||||
| Logs | Supported | ||||||
| Alerts | Supported | ||||||
| Fault detection | Supported | ||||||
| Statistics | Supported | ||||||
| Security functions | Terminal whitelist | Only terminals in the whitelist are allowed to access the wireless network | |||||
| AP Self-Secure | Anti-hijacking | ||||||
| Security protection | Anti-DDoS attacks | ||||||
DPtech AP2000 Series based on 802.11ac Wireless Access Device data sheet
