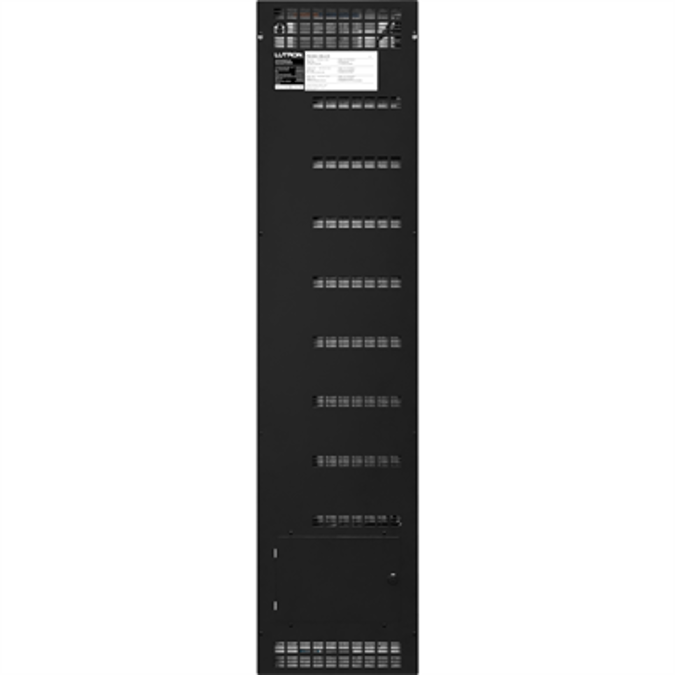

Athena DIN Rail Panel 120/277 V~

Configurable Lighting Control panels are pre-assembled and tested power panels that are configurable to control multiple load types. Panels are available in different sizes and panel types.

• Satellite Panel: For mounting DIN Power Modules (DPMs) only. Does not include circuit breakers.

• Satellite Panel with Breakers: Comes with DPMs and a branch circuit breaker for each DPM.

• System Panel: Comes with DPMs and a control gear compartment that can house a processor and power supply, and other low-voltage gear. Does not include circuit breakers.

  Features

• Panels are pre-wired and tested prior to shipping.

• Supports various load types using DIN power modules (DPMs):

  – 120 V~ Switching (QSN-4S8-120-D)
  – 120 / 277 V~ PRO LED+ Phase Adaptive (QSN-4A5-D) – 120 V~ 0–10 V-/Switching control (QSN-4T5-120-D)

• System panels are rated for 120/277 V~ applications and offer easy access to Class 2 control equipment which can include up to 2 interfaces or processors.

• Satellite panels are rated for 120/277 V~ applications and maximize the quantity of DPMs in a panel.

• Satellite panels with breakers are rated for 120/240 V~ (single phase 3-wire) and 120/208 V~ (three phase 4-wire) applications and offer a 120 V~ branch circuit breaker for each DPM.
• Easily integrates with Lutron QS devices.

• Scalable from a single area or floor; to a building or whole campus.

• Integral Athena Edge processor available in a system panel.

• Integral emergency contact closure input (CCI) on each DPM turns all lights on to a programmable level when activated using a LUT-ELI and ensures that the system is compliant with UL 924®.

• Bypass jumpers included for load mis-wire protection.

• Panels are available in three sizes: 16 in (406 mm), 42 in (1067 mm), and 65 in (1651 mm).

• Black, powder coated front cover with vents to maximize thermal performance included.

• DIN Panel
