DM NVX® 1080p60 4:4:4 Network AV Decoder

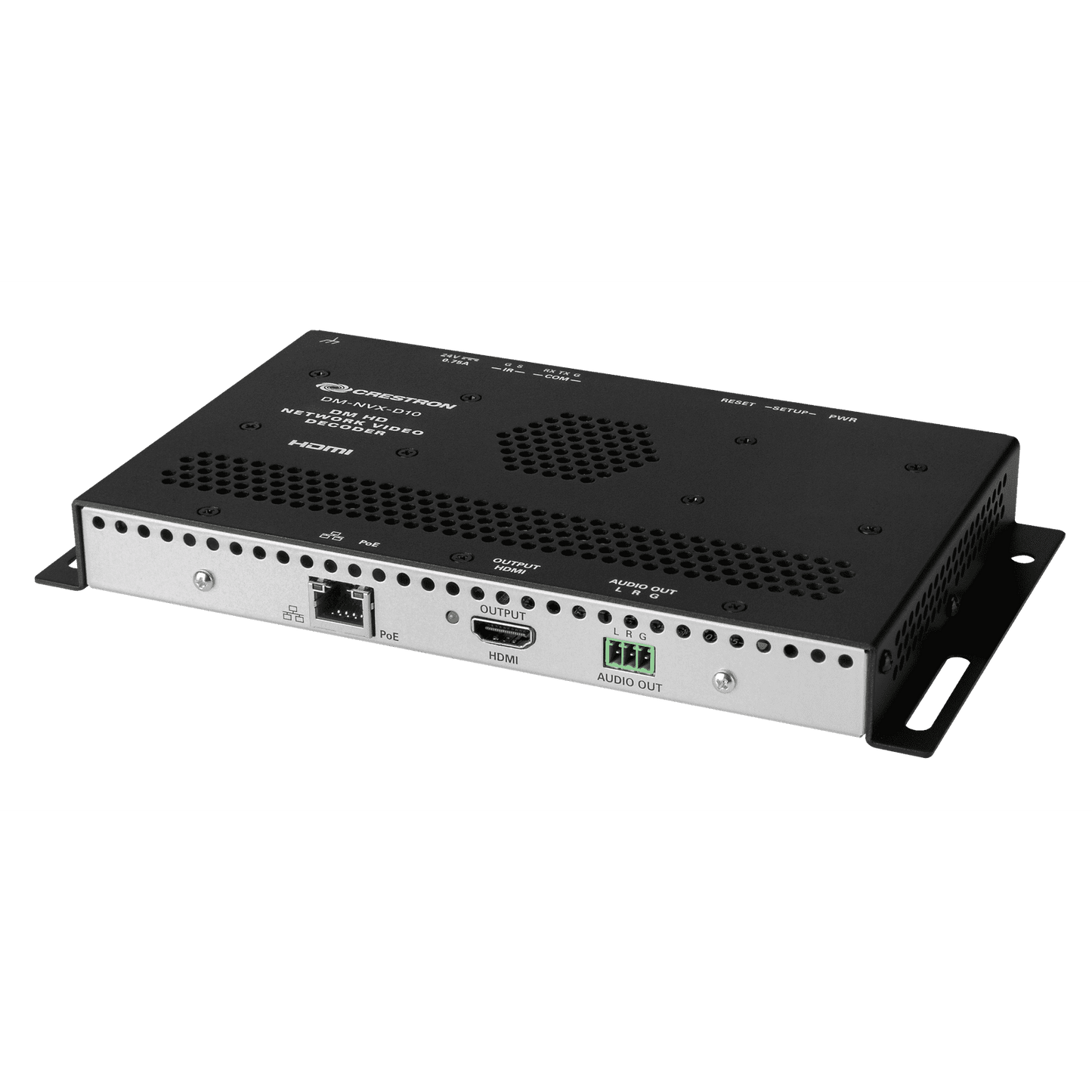

The DM-NVX-D10 is a compact AV over IP decoder designed to receive video with resolutions up to 1080p 4:4:4 over standard Gigabit Ethernet. Featuring secure web‑based control and management, an HDMI® output, an analog audio output, AES67 transmit and receive capability, and copper Ethernet connectivity with PoE support, the DM-NVX-D10 provides a decoder solution that offers price and performance optimization in a DM NVX® network AV installation of any size.¹

Real-Time 1080p60 Video Performance
Engineered for demanding conference room and classroom applications, the DM-NVX-D10 ensures real-time, full-motion 1080p60 video performance for the presentation of multimedia, videoconferencing, and live camera images. Interactive functions such as gameplay and the use of a mouse are fluid and natural.

A DM NVX system is engineered for stability and ultimate reliability. Line‑synchronized outputs ensure perfect synchronization of content across multiple displays for applications such as digital signage. Variable Multicast TTL (Time To Live) enables traversing multiple network routers for optimal flexibility.

Enterprise-Grade Security
Using advanced security features and protocols such as 802.1X authentication, Active Directory® credential management, AES‑128 content encryption, PKI authentication, TLS, SSH, and HTTPS, a DM NVX system delivers a true enterprise‑grade network AV solution engineered to fulfill demanding IT policies.

Decoder Functionality
The DM-NVX-D10 provides decoder functionality designed for use with the DM-NVX-E10 encoder. Both the DM-NVX-D10 and DM-NVX-E10 support resolutions up to 1080p60. The DM-NVX-D10 receives a signal from the DM-NVX-E10 and feeds it to a local display device via the HDMI output.

NOTE: In addition to the DM-NVX-E10, the DM-NVX-D10 is also interoperable with other DM NVX products that can function as encoders. The resolution of the encoder must be configured so that it does not exceed the maximum resolution of the DM-NVX-D10. If the DM-NVX-D10 is used with a DM NVX encoder other than the DM-NVX-E10 or DM-NVX-E20 Series, the stream type of the encoder must also be configured to interoperate with the DM-NVX-D10. Configuration of the encoder is accomplished by using the web interface or a control system.

It is recommended that the DM-NVX-D10 not be used with 4K60 4:4:4 encoders (for example, the DM-NVX-36x[C] Series) or the 4K60 4:2:0 encoders (DM-NVX-E20 Series) in order to maintain the higher resolutions supported by the 4K60 4:4:4 and 4:2:0 encoders.

NOTE: The HDMI output does not support video scaling.

Analog Audio De-embedding
The analog audio output provides a stereo line‑level signal to feed a local sound system or sound bar. The output volume is adjustable via a control system or web browser.²

7.1 Surround Sound Audio
DM NVX technology supports the lossless transport of 7.1 surround sound audio signals, including Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed linear PCM.

AES67 Audio Embedding and De-embedding
AES67 support enables the selected audio source to be transmitted as a 2-channel AES67 audio stream while another 2‑channel AES67 audio stream is received from a Crestron DSP or other third-party device. The AES67 audio stream that is received can be combined with the video signal and then output via the HDMI output and analog audio output.

NOTE: An AES67 audio stream that is received by a DM NVX endpoint cannot be transmitted from that endpoint.

Copper Ethernet Connectivity

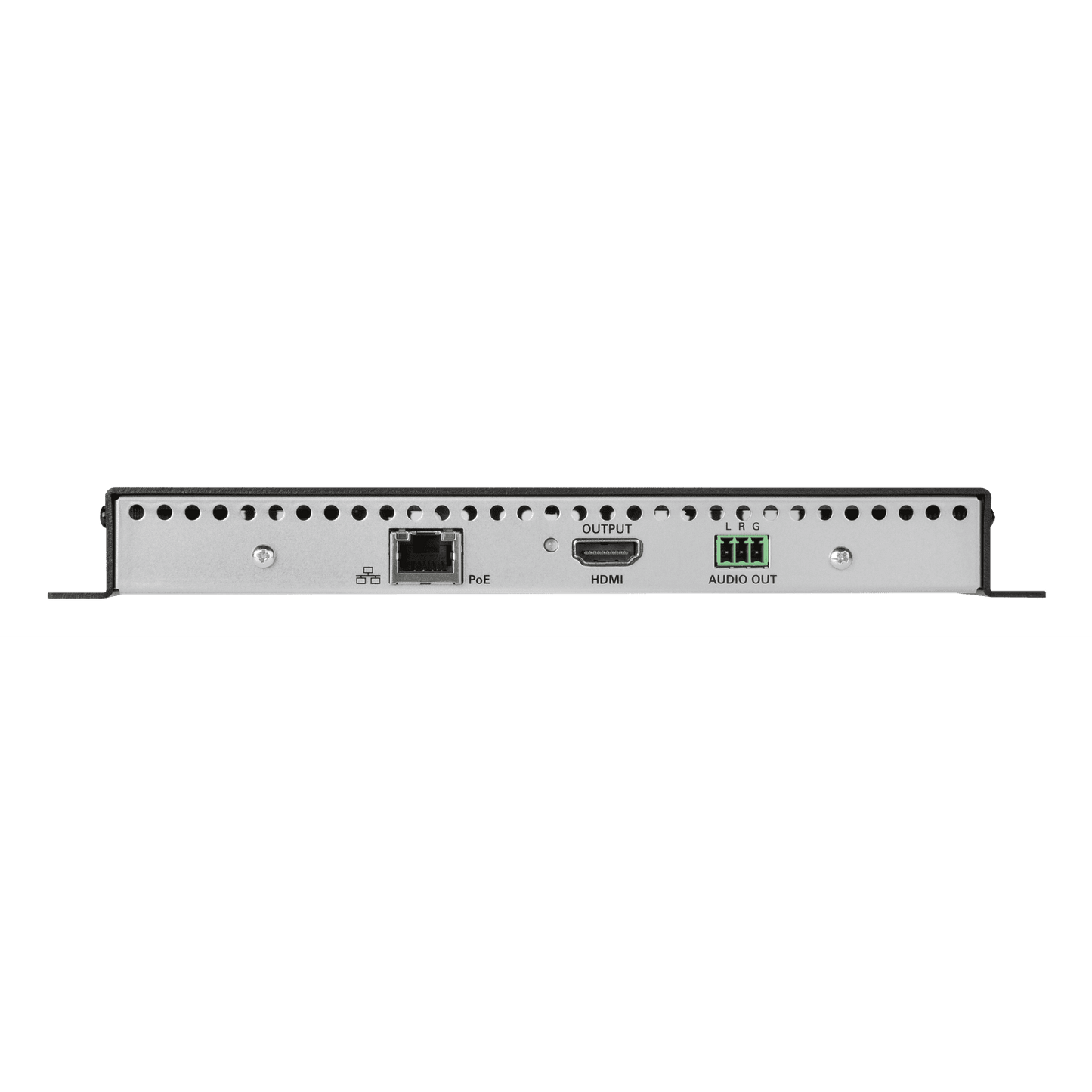

The DM-NVX-D10 includes one RJ-45 1000BASE‑T Ethernet port.¹ The port is PoE compliant, enabling the device to be powered via a PoE Ethernet switch.³ For information about network requirements and guidelines, refer to the DM NVX AV-over-IP System Design Guide.

Automatic Point-to-Point Connectivity with the DM-NVX-E10
Point-to-point connectivity enables the DM-NVX-D10 to be connected directly to a DM-NVX-E10 to stream video and audio. Rather than being connected to an Ethernet switch, the 1000BASE-T Ethernet port of the DM-NVX-D10 is connected directly to the 1000BASE-T port of the DM-NVX-E10. By default, point-to-point mode automatically detects whether a DM-NVX-D10 is connected directly to the DM-NVX-E10 or to a 1000BASE-T switch. When a direct connection between the DM-NVX-D10 and DM-NVX-E10 is detected, the devices operate in point-to-mode without the need for additional configuration. The web interface or a control system can be used to disable point-to-point mode or to enable automatic detection of point-to-point connectivity.

Device Control via RS-232, IR, and CEC

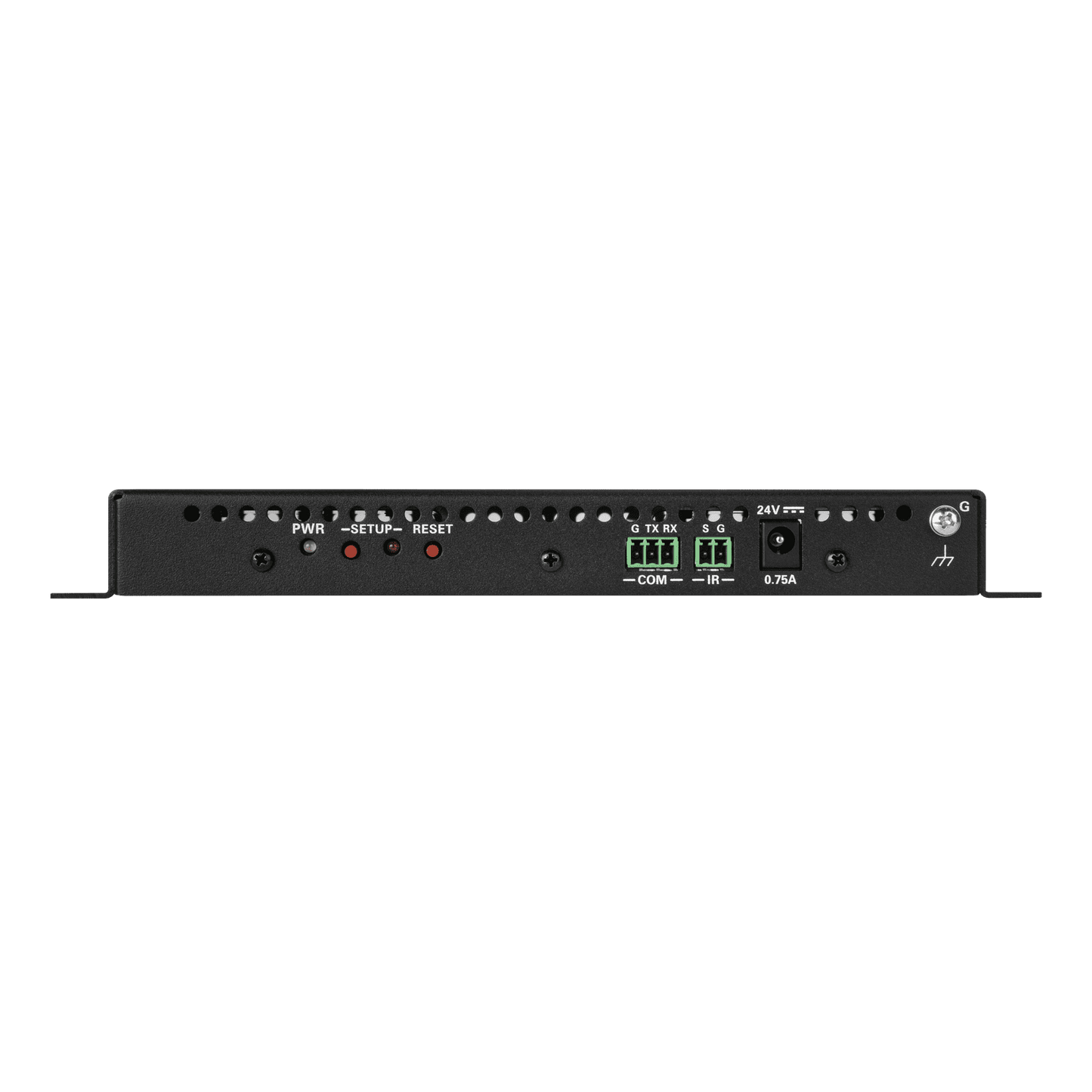

The DM-NVX-D10 includes built‑in COM (RS‑232) and IR ports for control of devices under the management of a control system. Additional control capability is provided by CEC (Consumer Electronics Control) over the HDMI connection. Under the management of a control system, the DM-NVX-D10 can control the display device via CEC, potentially eliminating the need for dedicated serial cables or IR emitters.

The COM port, IR port, and CEC over the HDMI output can also enable the display device to be turned on or off automatically without the use of a control system.

Web‑Based Setup
Setup of the DM-NVX-D10 is accomplished by using a web browser. Full control and monitoring of the device is enabled through integration with a control system or with a DM NVX Director® virtual switching appliance.

Streamlined Management Using DM NVX Director Virtual Switching Appliances
Use of a DM NVX Director virtual switching appliance (DM-NVX-DIR-80, DM-NVX-DIR-160, or DM-NVX-DIR-ENT) streamlines the entire configuration and control process. A DM NVX Director appliance provides a central point of management and enables the creation of multiple virtual matrix switchers through one easy‑to‑use web‑based portal.

Compact, Surface-Mountable Design

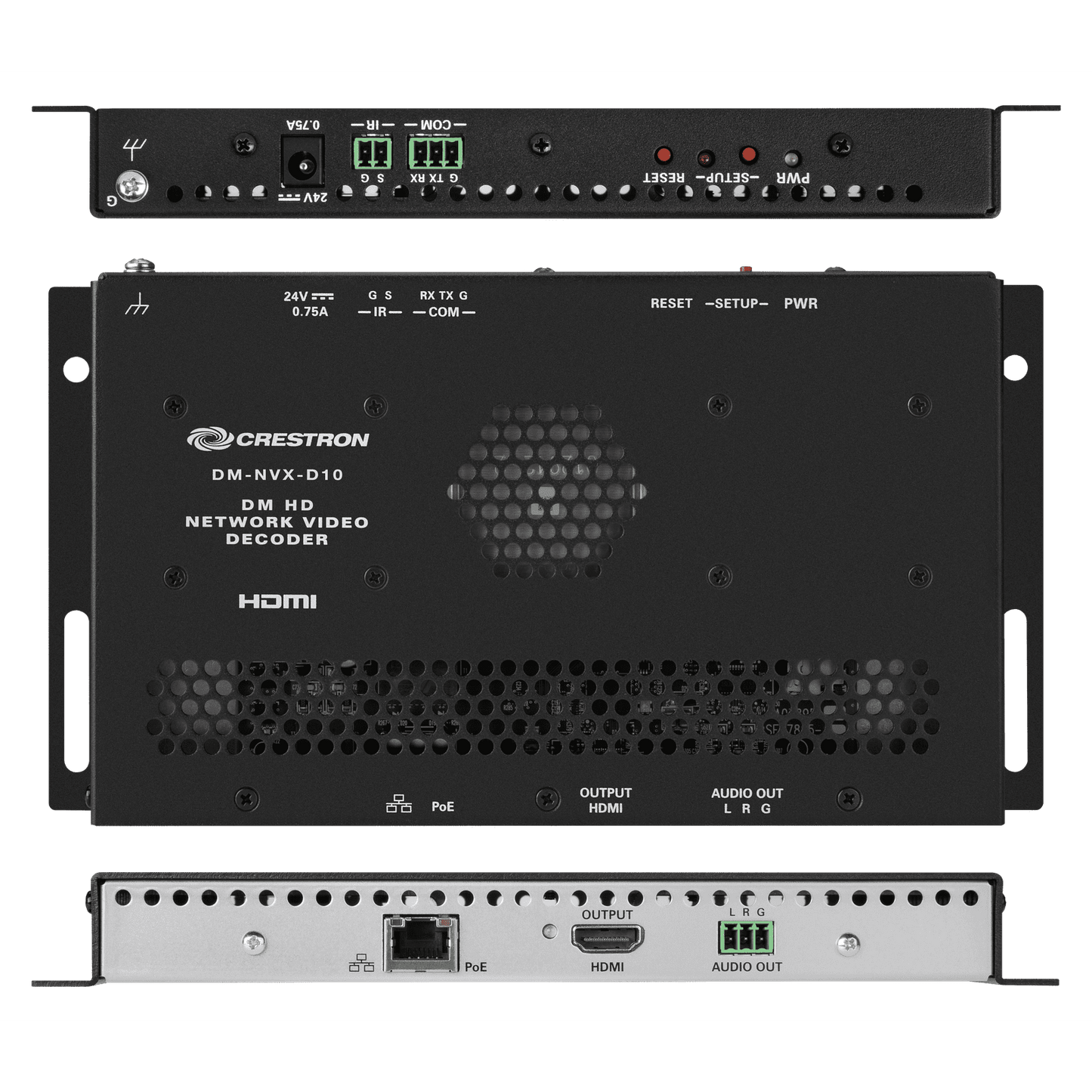

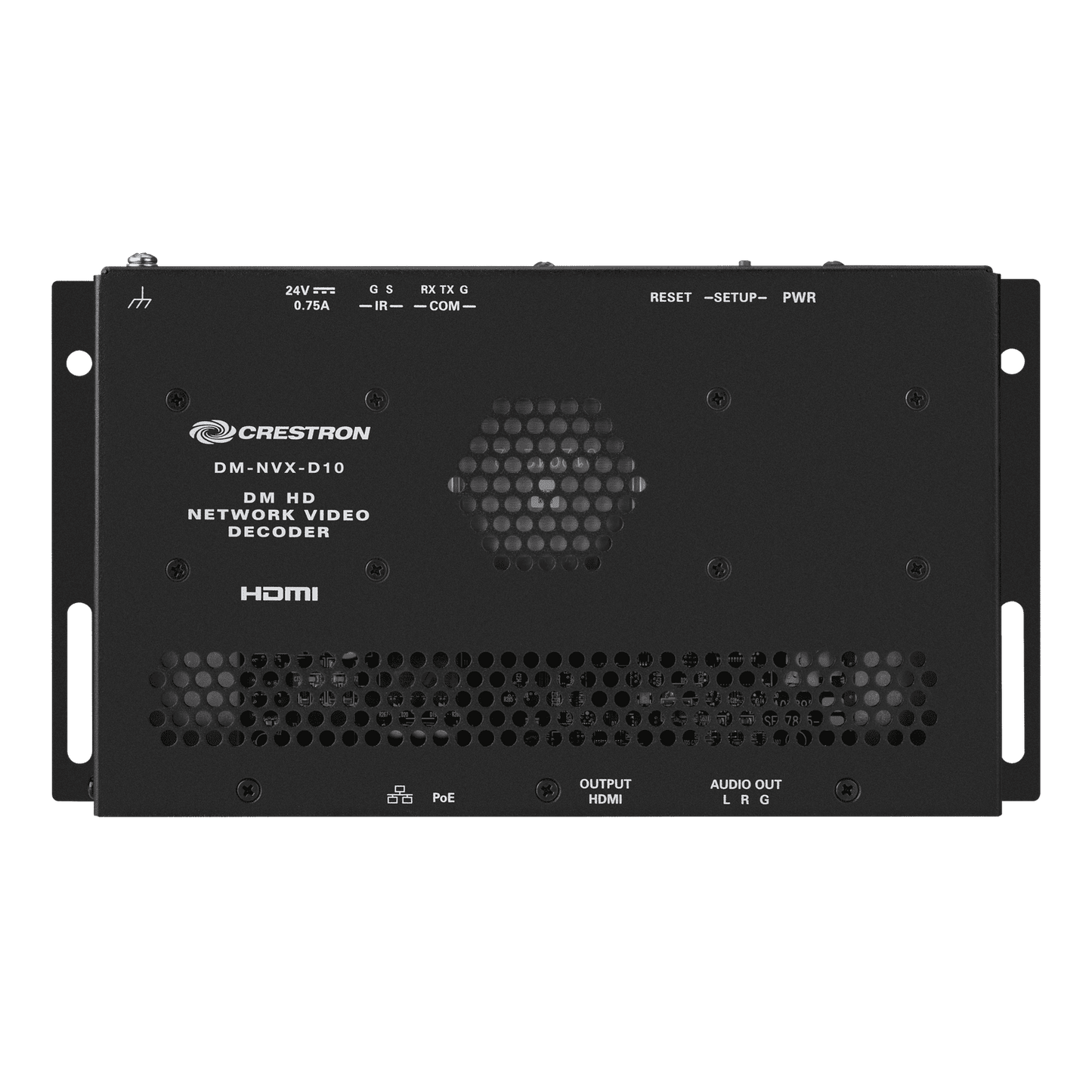

The DM-NVX-D10 mounts conveniently to a flat surface or rack rail and fits easily behind a flat panel display, above a ceiling‑mounted projector, or inside an AV cart or equipment cabinet. All connectors and LED indicators are positioned on the front and rear of the device, offering optimal access and visibility for a clean, serviceable installation. Power is provided via or an optional power pack (sold separately).³

For additional information about DM NVX technology and the DM NVX product family, refer to the DM NVX web page at www.crestron.com/nvx.
