Softing

Visual Fault Locator Kit

Visual Fault Locator Kit

SKU:FX_VFL_5000_KIT

Out of stock

Regular price RM1,344.00
Regular price RM1,620.00 Sale price RM1,344.00
Sale Sold out
Shipping calculated at checkout.

UOM: Unit

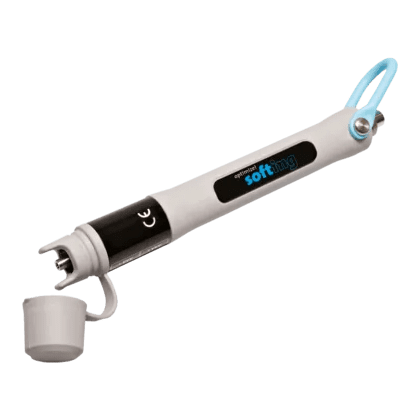

The VFL 5000 is used for continuity testing and fault location on optical fibers and components in singlemode and multimode area. Depending on the application, a range of more than 5 km can be achieved. A universal adapter enables the Connection of all common 2.5 mm optical connector systems. An adapter for 1.25 mm is also available. The operating time is in flashing mode approx. 40 hours.

Due to its compact and robust design, the visual error detector is ideal for daily use. Use in all fiber optic applications, e.g. in data centers, outdoors, in industrial applications environments, as well as in laboratories. The Visual Faul Locator from Softing IT Networks is characterized, among other things, by with several practical features, such as its special, roll-resistant shape, the cap that is captive against dust and impact and its extremely robust housing. The Visual Fault Locator can be easily and with only one hand and is powered by AAA standard batteries. The practical holder makes it easy to hang up the VFL at any time.



Features
  • Detection of mechanical damage to the fibre
  • Fiber end detection
  • Luminous range over a maximum of 5 km (typically and under normal lighting conditions)
  • Generates visible laser light in the wavelength range of approx. 635 nm (red). With a transmission power less than 1 mW, the device is classified in laser class 2 (IEC 60825-1:2014)



Documentation

Datasheet

Quick Start Guide

View full details
