Extreme Networks

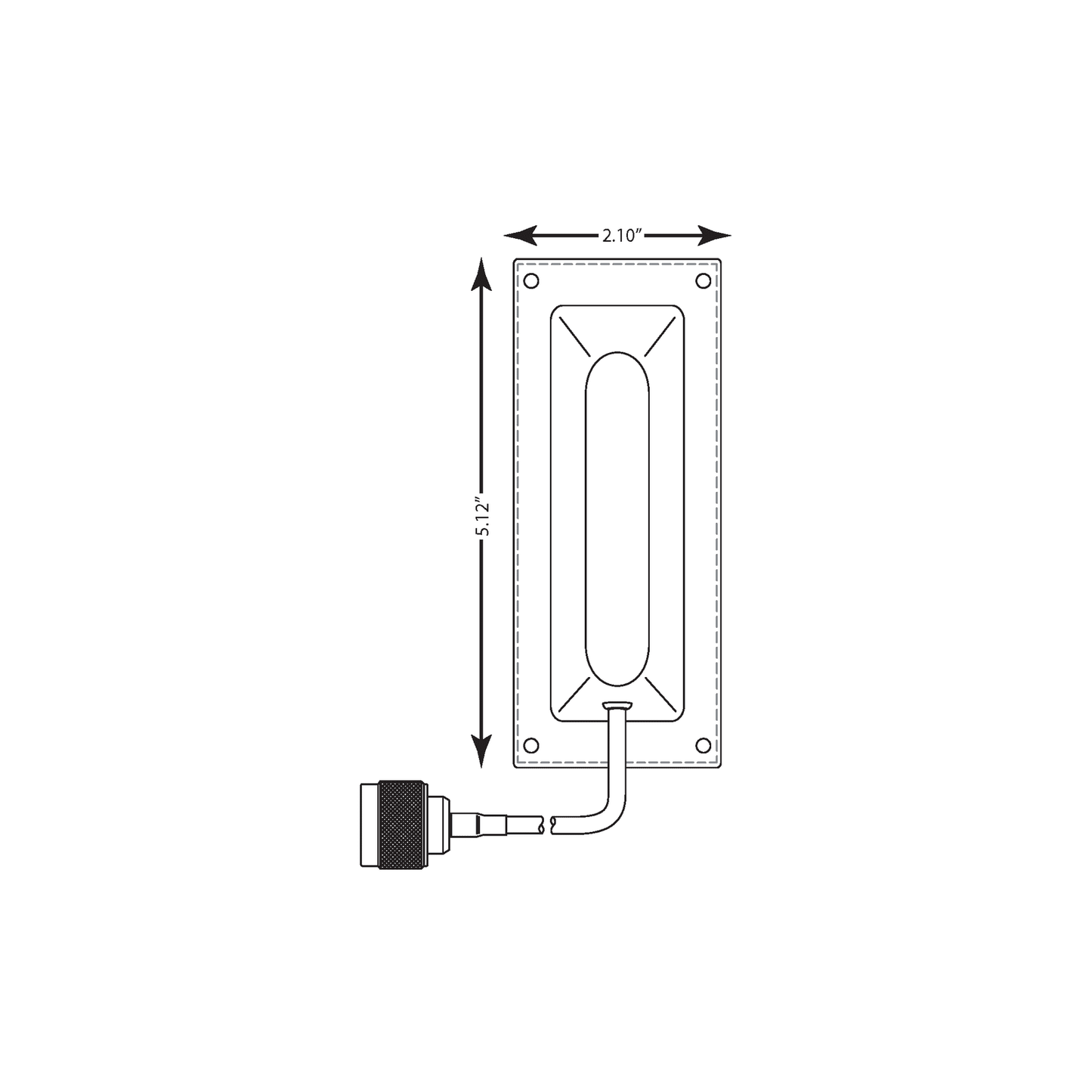

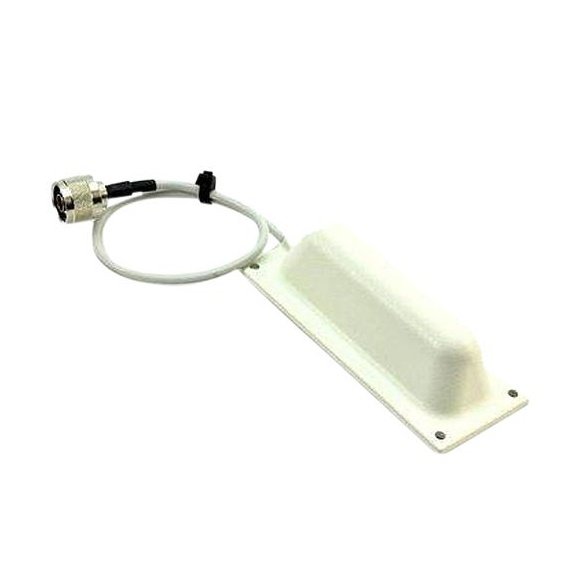

Antenna Outdoor Panel
Antenna Outdoor Panel
SKU: Part Number: ML-2452-PNA5-01R
Low stock: 4 left
Regular price
RM432.00
Regular price
RM540.00
Sale price
RM432.00
Unit price
/
per
Shipping calculated at checkout.
DESCRIPTION & SPECIFICATIONS
Antenna 245 GHz Outdoor Panel 5 dBi Beam Width E-Plane 65 degrees H-Plane 120 degrees Connector Type
| Type | Panel |
| Frequency | 2400-2500/4900-5900 MHz |
| Max Gain (dBi) | 5.5/6.0 |
| Polarization | Linear, Vertical |
| Azimuth | 3dB Beamwidth: 120°/ 120° |
| Elevation | 3dB Beamwidth: 60°/ 60° |
| Max UNII-1 Elevation Gain (dBi) | 5.2 |
| Cable Length (in.) | 12 |
| Cable Type | RG-58 Ultralink |
| Connector Type | Type N Male |
| Weight | 0.2 lb |
| Plenum Antenna | No |
| Plenum Cable | Yes |
| Outdoor Rated | Yes |
| Storage Temp Range (C) | -30 / +70 |
| Operation Temp Range (C) | -30 / +70 |
Disclaimer: The images shown are for illustration purposes only and may not be an exact representation of the product. vnetwork System reserves the right to change product images and specifications at any time without notice.
