Softing

NetXpert XG2, Qualifier Kit, 10G, FO + CU

NetXpert XG2, Qualifier Kit, 10G, FO + CU

SKU: Part Number:  NX_XG2_Plus

Pre Order

Regular price RM32,940.00
Regular price RM39,687.00 Sale price RM32,940.00
17% Off
Shipping calculated at checkout.

DESCRIPTION & SPECIFICATIONS

Performance tester up to 10Gb/s for copper and fiber optics

  • Complete performance qualification for copper and fiber optic cabling at the touch of a button
  • Comprehensive troubleshooting for fiber optic cabling using video microscope and LiveLight™ attenuation trend analysis

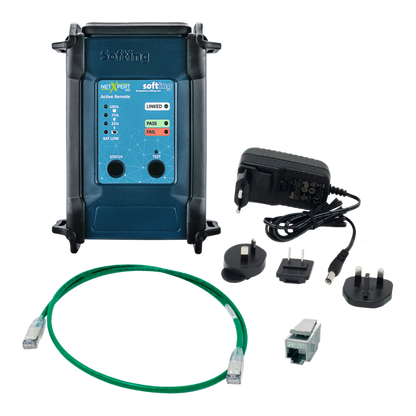

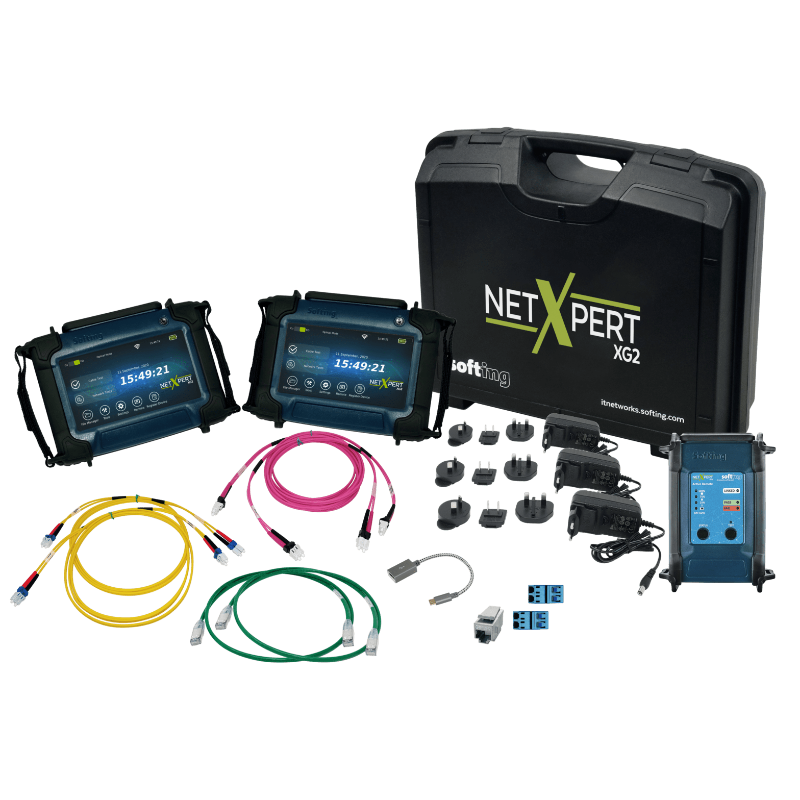

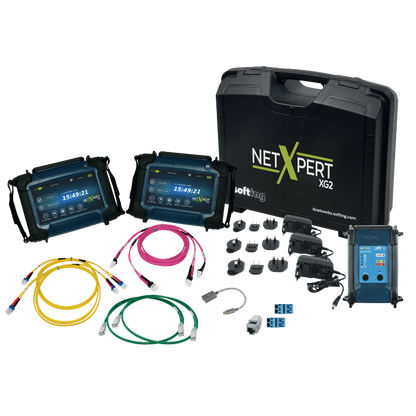

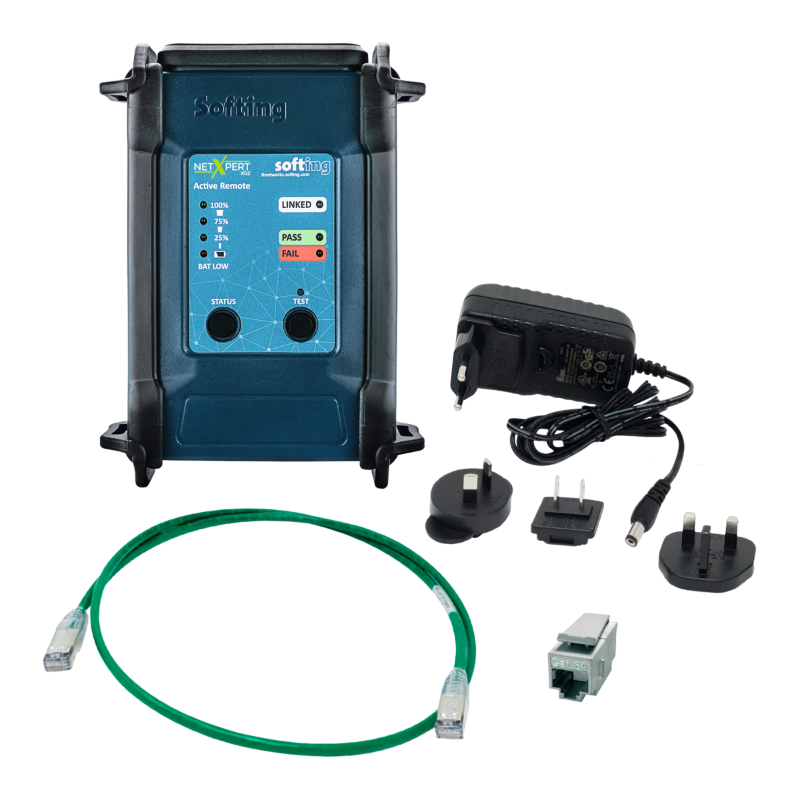

  • Set of 2 main units for fiber measurements and one remote for copper measurements

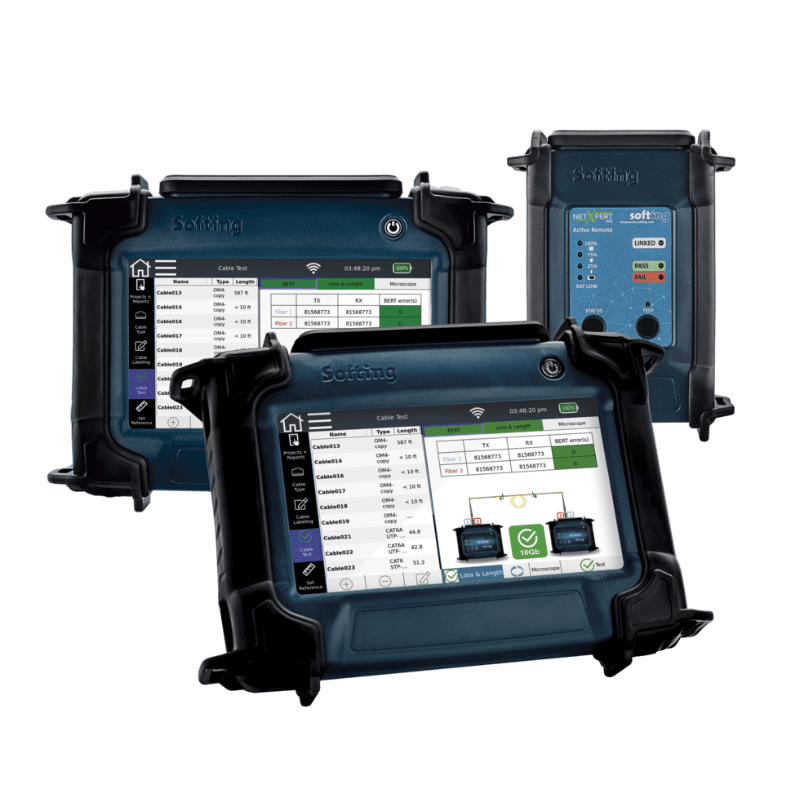

  • Main units with graphical user interface and 7 inch display



Qualification, commissioning and troubleshooting of copper and fiber routes: Intuitive, flexible, fast

High data transmission rates on copper and fiber optic cabling of up to 10Gb/s Ethernet and new Power-over-Ethernet applications up to 90W lead to completely new challenges in the field of structured cabling. NetXpert XG2-PLUS offers comprehensive active and passive network testing up to 10Gb/s for qualification, commissioning and troubleshooting on copper and fiber cabling. With the largest touch display in its class, NetXpert XG2-PLUS guarantees easy operation and clear presentation of results. At the same time, NetXpert XG2-PLUS offers highest reliability of results due to the unique combination of up to four different test methods for the evaluation of copper links. For fiber optic cabling, the NetXpert XG2-PLUS offers an attenuation test in addition to the BERT test and, through LiveLight™, an attenuation trend display. For the inspection of fiber optic connectors there is the possibility to connect a video microscope.



Flexible, expandable model range upgradeable from 1 to 10Gb/s

NetXpert XG2 and NetXpert XG2-PLUS qualify twisted pair cabling from 1 to 10Gb/s. With their unique combination of 4 measurement methods, these devices check whether your cabling can transmit Ethernet up to 10Gb/s without interference. The NetXpert XG2 is available in the smallest version starting at 1Gb/s and can be upgraded up to 10Gb/s. The NetXpert XG2-PLUS is fully equipped to also qualify fiber optic cabling up to 10Gb/s.



Advantages
Areas of application
  • Whether troubleshooting, maintenance or servicing, the NetXpert XG2-PLUS performance tester is the ideal device for all network testing applications for installers, system integrators and industry for copper and fiber optic cabling.
Special characteristics
  • Fully equipped for tests on copper and fiber optic cabling (SFP modules optional)
  • LiveLight™ Attenuation Trend Analysis
  • Optional video microscope for fiber optic connectors
Your benefit
  • Detailed documentation of the work results in PDF or CSV format with individual logo.
  • Determination and documentation of the maximum bandwidth of copper and fiber optic cabling up to 10Gb/s
  • Troubleshooting tool for active networks (copper, fiber, WiFi)



Documentation

Brochure

Datasheet

Quick Start Guide

Disclaimer: The images shown are for illustration purposes only and may not be an exact representation of the product. vnetwork System reserves the right to change product images and specifications at any time without notice.
